Front Seat Ventilation Control Module -J799- / -J800-






Comfort Systems - Connector Views

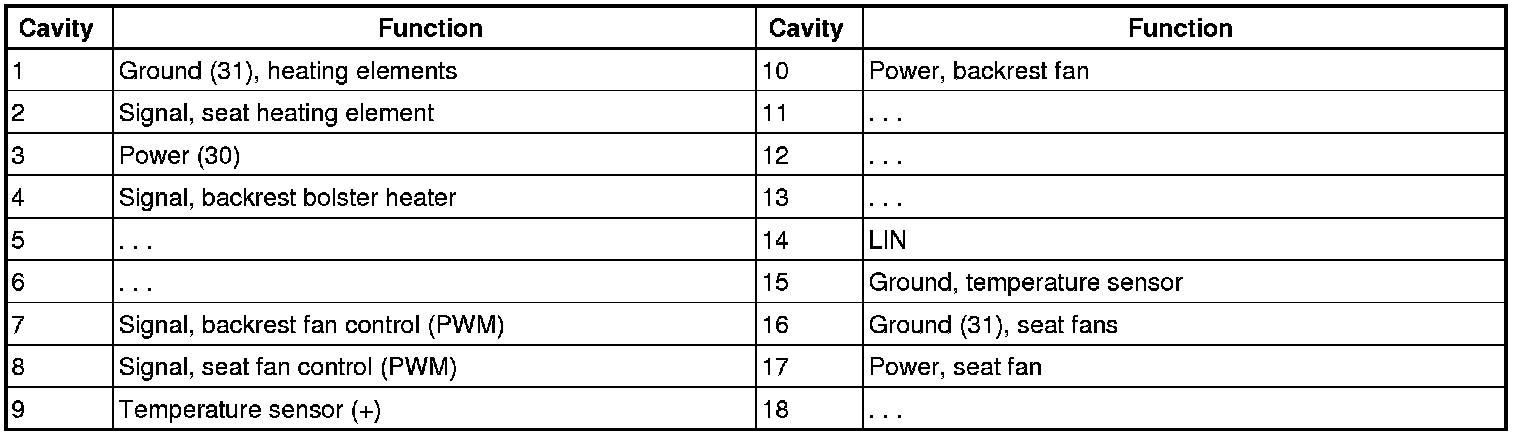

Front seat ventilation control module -J799- / -J800-



Left and Right Front Seat Ventilation Control Module
