Intake Manifold Runner Position Sensor 2 -G512- /Intake Flap Motor 2 -V275-






Engine Management System - Connector Views

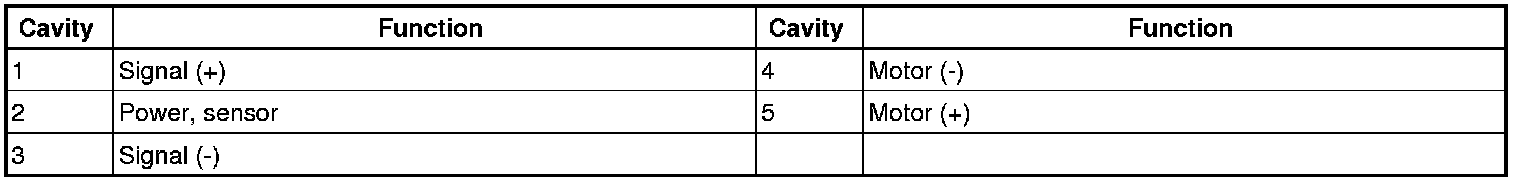

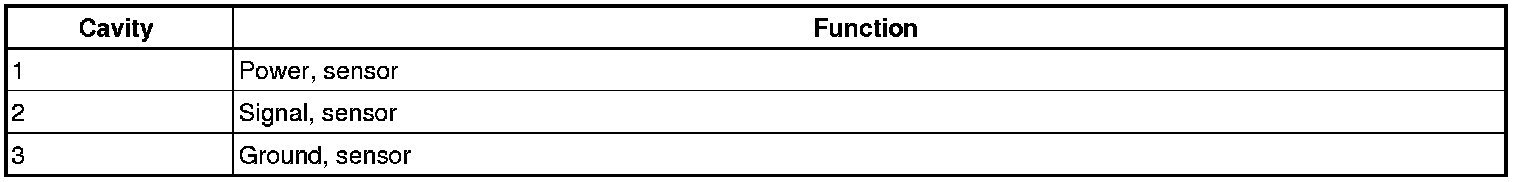

Intake manifold runner position sensor 2 -G512- /Intake flap motor 2 -V275-



TDI engine












3.0L engine
