Home >> Volkswagen >> 2012 >> Touareg (7P5) V6-3.0L DSL Turbo (CATA) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accessories and Optional Equipment >> Collision Avoidance Module >> Lane Change Assistance Control Module -J769-

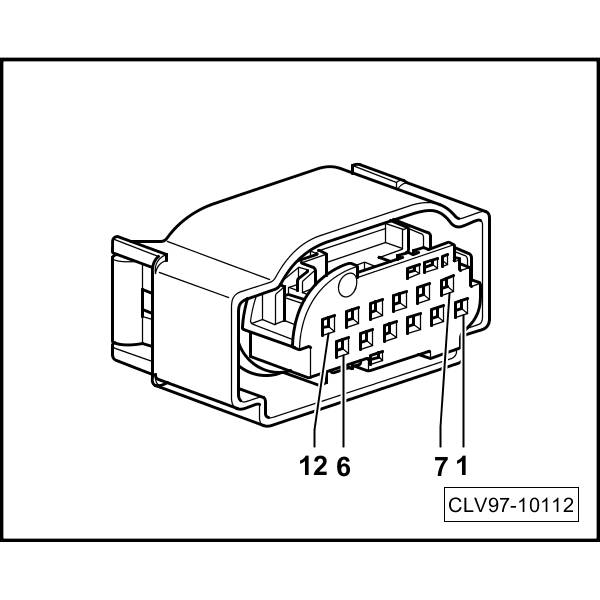

Lane Change Assistance Control Module -J769-

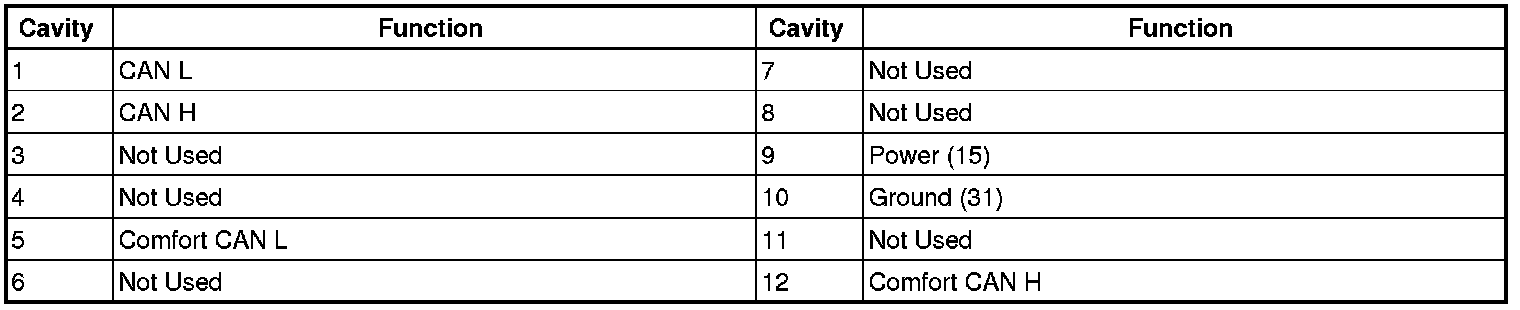

Lane Assist Systems - Connector Views

Lane change assistance control module -J769-
