Manual Seat Height Adjustment Operating Lever

Manual Seat Height Adjustment Operating Lever

• The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

• The seat is in the highest position.

- Remove the trim on the door sill side. Refer to => [ Door Sill Side Trim ] Door Sill Side Trim.

- Remove the trim bracket on the door sill side. Refer to => [ Door Sill Side Trim Bracket ] Door Sill Side Trim Bracket.

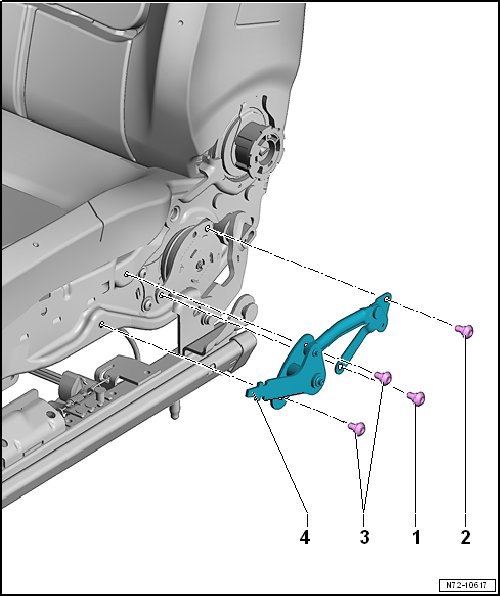

- Remove bolts - 1 -, - 2 - and - 3 -.

- Loosen the operating lever - 4 - from the seat.






Installing

- Attach the operating lever - 4 - to the seat.

The installation sequence is: - 1 -, - 2 - and - 3 -.

Torque: 8 + / - 1 Nm
