Cover and Cushion of the Pass-through

Cover and Cushion of the Pass-through

Removal

- Remove the center headrest. Refer to => [ Headrest ] Headrest.

- Remove the pass-through. Refer to => [ Pass-Through ] Pass-Through.

- Remove the rear center armrest trim. Refer to => [ Center Armrest Trim ] Center Armrest Trim.

- Remove center arm rest. Refer to => [ Center Armrest ] Center Armrest.

- Remove the cover frame from the backrest lock of the pass-through. Refer to => [ Pass-through Backrest Lock Cover Frame ] Pass-through Backrest Lock Cover Frame.

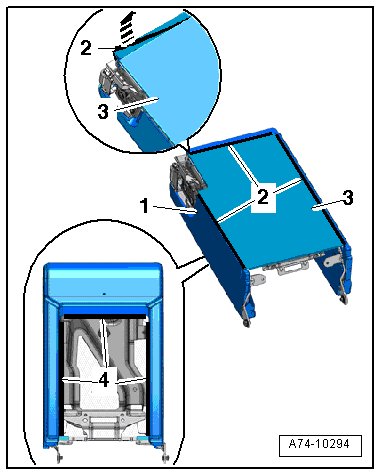

- Pry off and remove the profiles - 2 - on the back side of the pass-through door - 3 - - arrow -.






- Disengage the profiles - 4 - on the front side of the pass-through door.

- Remove the cover - 1 - and cushion from the pass-through door.

Installation

Installation is performed in the reverse order of removal.
