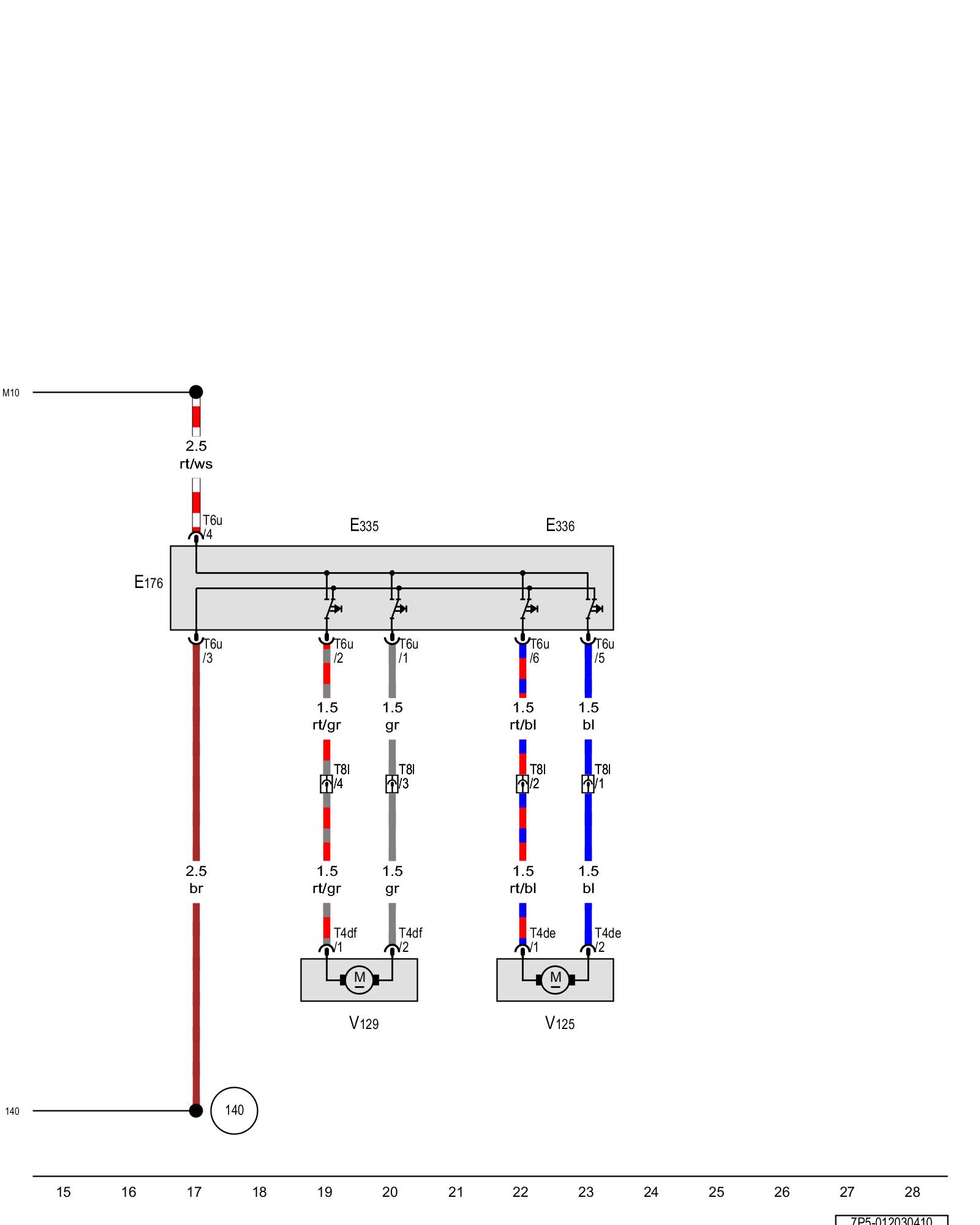

Diagram 12/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Driver seat lumbar support adjustment switch, Driver seat lumbar support curvature adjustment motor, Driver seat lumbar support height adjustment motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E176 - Driver seat lumbar support adjustment switch Power Comfort Seat Component Overview Lumbar Support Adjustment Switch -E176- / -E177-

E335 - Lumbar support height adjustment button

E336 - Lumbar support forward/back adjustment button

T4de - 4-pin connector

T4df - 4-pin connector

T6u - 6-pin connector

T8l - 8-pin connector Overview, Coupling Stations Inside The Vehicle

V125 - Driver seat lumbar support curvature adjustment motor Power Comfort Seat Component Overview Lumbar Support Curvature -V125- / -V126-

V129 - Driver seat lumbar support height adjustment motor Power Comfort Seat Component Overview Lumbar Support Height Adjustment Motor -V129- / -V130-

(140) - Ground connection 2 (in seat adjustment wiring harness)

(M10) - Connection 1 (in driver seat adjustment wiring harness)
