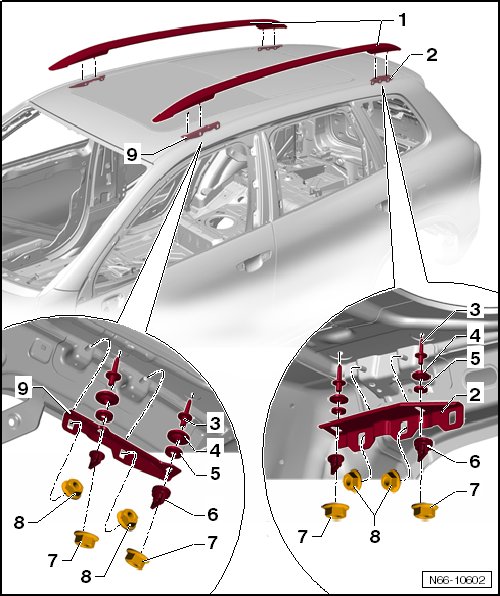

Roof Rail Assembly Overview

Roof Rail Assembly Overview






1 Roof Rail

2 Rear angle bracket

3 Centering pin

• Only in the case of a new angle bracket

4 Upper conical washer

5 Lower conical washer

6 Mounting nut

• For the centering pin in the case of a new angle bracket

7 Hex nut

• Roof rail threaded connection

• 4 pieces per side

• Tightening specification: 10 Nm

8 Bolt

• Angle bracket threaded connection

• Quantity: 2 per bracket

• Tightening specification: 10 Nm

9 Front angle bracket
