Right front seat ventilation control module -J799-







Control modules in interior

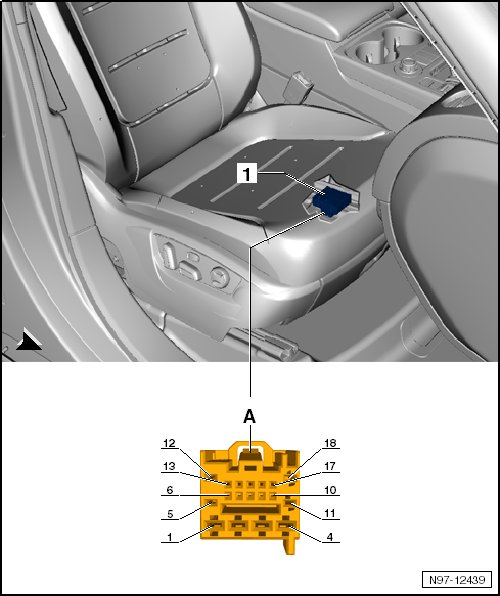

Right front seat ventilation control module -J799-







1 - Right front seat ventilation control module -J799-

A - 18-pin connector -T18b-

Note:
• The installation of the door control unit on the front passenger side
is similar to the installation on the driver side.
