Front passenger seat adjustment control module -J720-

Control modules in interior

Front passenger seat adjustment control module -J720-

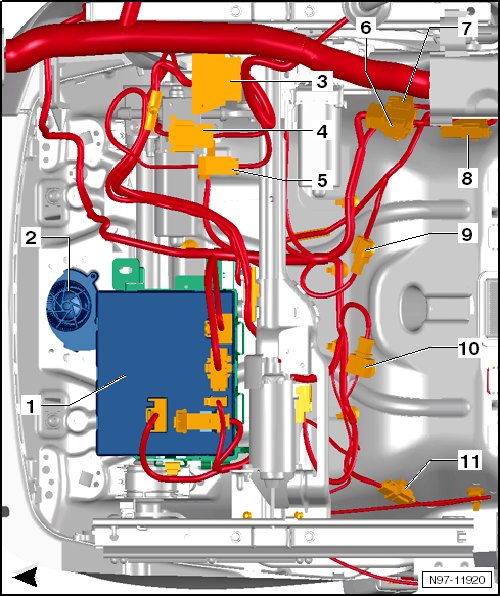

Component Location







1 - Front passenger seat adjustment control module -J720-

2 - Front passenger seat cushion blower fan -V391-

Note:
• The installation of the door control unit on the front passenger side
is similar to the installation on the driver side.

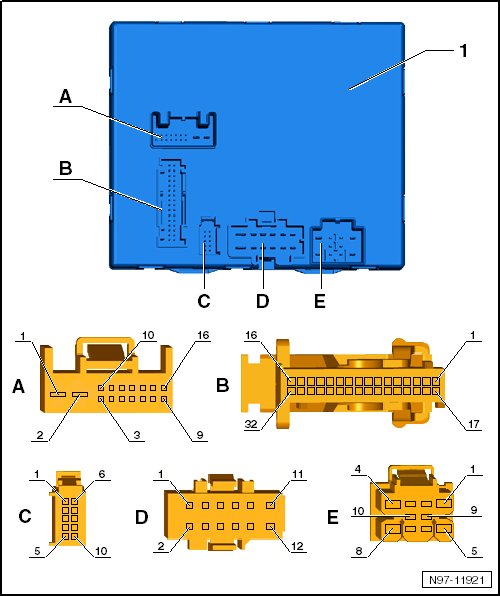

Pin Arrangements







1 - Front passenger seat adjustment control module -J720-

A - 16-Pin Connector -T16n-

B - 32-pin connector -T32l-

C - 10-pin connector -T10ah-

D - 12-Pin Connector -T12ab-

E - 10-pin connector -T10ai-
