Front Passenger Trim

Front Passenger Trim

Removing

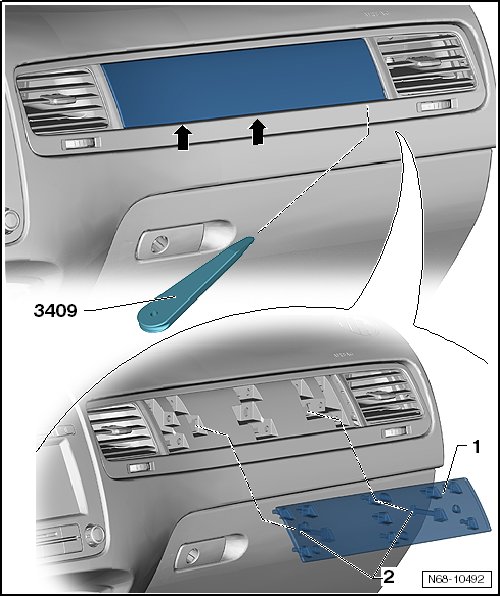

- Use the trim removal wedge (3409) to detach the front passenger trim - 1 - from the mounts - arrows - in the instrument panel.

- If the catches - 2 - block trim removal, move the front passenger trim - 1 - slightly to the right and remove.






Installation

• The front passenger trim - 1 - is clipped in the front passenger frame. There are 3 transparent plastic grommets and 5 rubber buffers in the frame for noise insulation. If plastic grommets and/or rubber buffers remain in the trim during removal, they must be removed from the trim. The plastic grommets and/or rubber buffers must then be reinstalled in the frame mounts.

- Insert the catches - 2 - of the front passenger trim - 1 - in the corresponding key holes of the front passenger frame. Then move the trim to the left.

- Insert the front passenger trim in the frame and engage it in the horizontal direction.
