B-Pillar Trim

B-Pillar Trim

• Removal and installation are described for the left side of the vehicle. Removal and installation for the right side are performed in the same manner.

Removal

- Switch off the ignition.

• Belt height adjuster in highest position.

- Remove the belt anchor at the front seat. Refer to => [ Front Seat Belt Anchor ] Front Seat Belt Anchor.

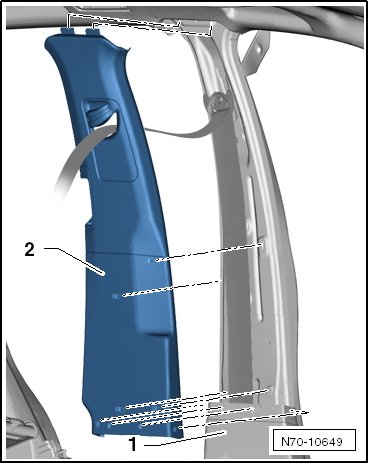

- Unclip the B-pillar trim - 2 - from the sill panel strip - 1 - and then in the center from the B-pillar.






- Press the B-pillar trim outward in the transition area to the headliner and then pull it forward from under the headliner.

- Disconnect connectors.

- Thread the seat belt through the belt height adjuster.

Installation

- Installation is performed in the reverse order of removal.

• Check whether the trim is in the door seal piping after installation.
