Rear Door Trims

Rear Door Trims

Removing






Perform the following:

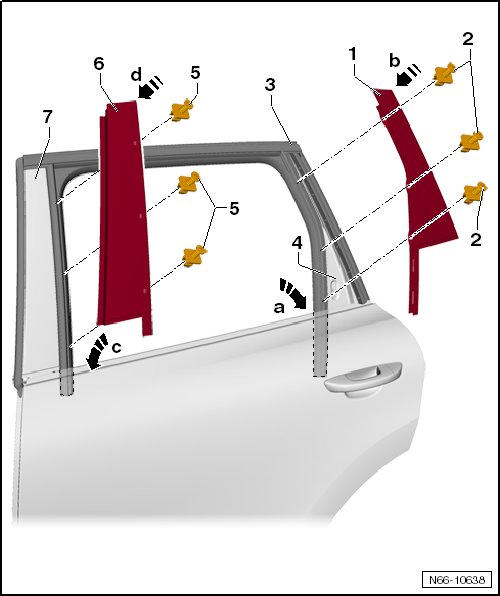

Front trim - 6 -.

- Pull the window guide out of the mount - arrows c -.

- Remove the bolts - 5 - and the clips - 2 -.

- Remove the front trim - 6 - - arrow d -.

Rear trim - 1 -.

- Pull the window guide out of the mount - arrow b -.

- Remove the bolts - 5 - and the clips - 2 -.

- Remove the rear trim - 1 - - arrow a -.

Installing






Perform the following:

Front trim - 6 -.

- Install the front trim - 6 - - arrow d -.

- Install the bolts - 5 - with the clips - 2 - and tighten the bolts: 2 Nm.

- Install the window guide in the mount - arrow c -.

Rear trim - 1 -.

- Install the front trim - 1 - - arrow b -.

- Install the bolts - 5 - with the clips - 2 - and tighten the bolts: 2 Nm.

- Install the window guide in the mount - arrow a -.
