Rear Door Cover

Rear Door Cover

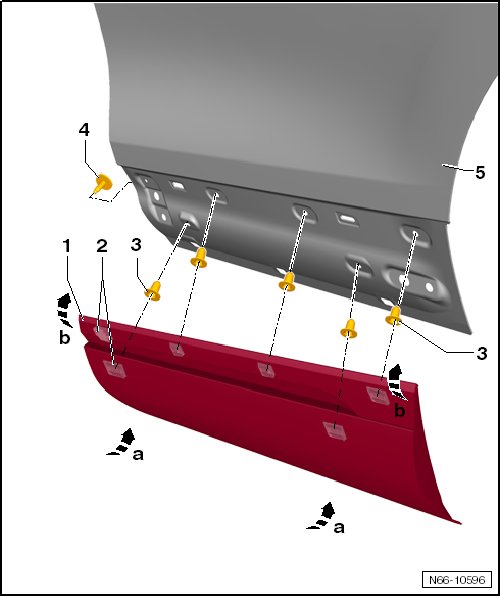

Removing






- Remove the bolt - 5 - from the inside of the door - 4 -.

- Pull the cover - 1 - out of the grommets - 2 - - arrows a -.

- Pull the cover - 1 - down - arrows b - off of the door.

Installing






- Check the grommets - 3 - and clips - 2 - for damage and replace if necessary.

- Slide the cover - 1 - from below onto the door - 5 - - arrows a -.

- Press the cover - 1 - with the clips - 2 - into the grommets - 3 - - arrows b -.

- Tighten the screw - 4 - on the inside of the door. Tightening specification: 2 Nm.
