Drip Rail

Drip Rail

Removing






Perform the following:

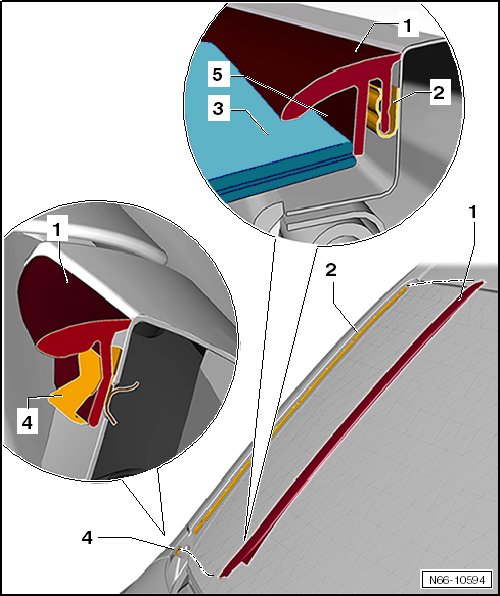

- Starting from the top, lift the drip rail - 1 - out of the retaining strip - 2 - and the retaining clip - 4 -.

Installation






Perform the following:

- Install the drip rail - 1 - on the retaining strip - 2 - and the retaining clip - 4 - and center.

- Press the drip rail - 1 - from the bottom to the top into the retaining strip - 2 - and the retaining clip - 4 -.

- Thread the lip - 5 - of the drip rail behind the windshield - 3 -.
