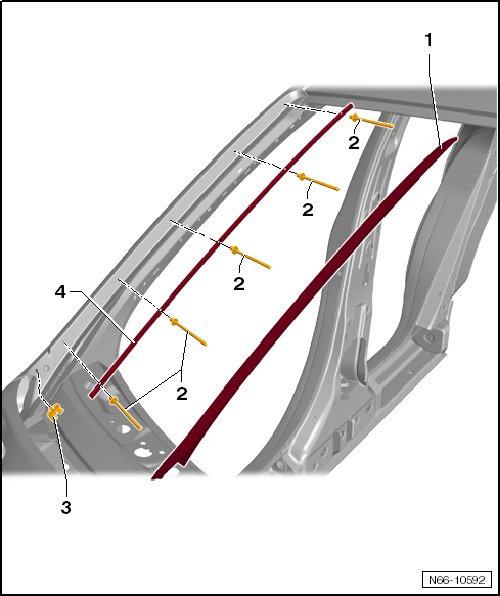

Drip Rail Assembly Overview

Drip Rail Assembly Overview






1 Drip rail

2 Pop rivet

• Quantity: 5

3 Retaining clip

• Is secured to the fender

4 Retaining strip

• Only with the windshield removed, removing and installing
