Trunk / Liftgate Weatherstrip: Service and Repair

Rear Lid Seal






Perform the following:

Removing

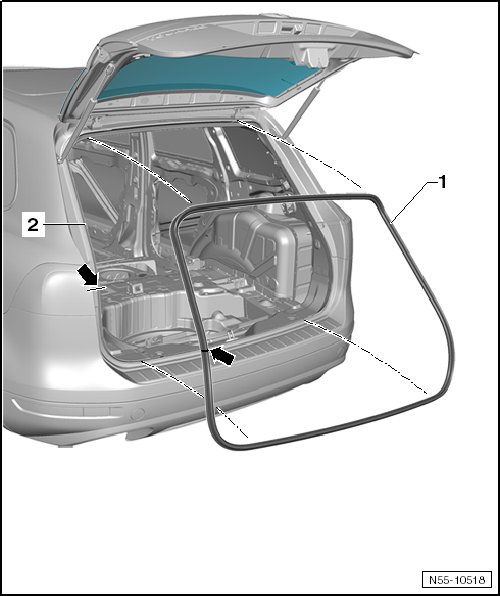

- Remove the rear lid weather seal - 1 - from the body flange - 2 -.

Installation

• If the seal is being installed again, the sealing performance and proper seating are no longer guaranteed.

• For this reason, every completely removed seal must be replaced with a so-called "hammer-stroke seal".

• For partially removed seals, seal flanks must be pressed together before installation.

- Align the rear lid seal - 1 - with the vulcanized point - arrow - with respect to the tail lamp - arrow -.
