Trunk / Liftgate Striker: Service and Repair

Striker Pin






Perform the following:

Removing

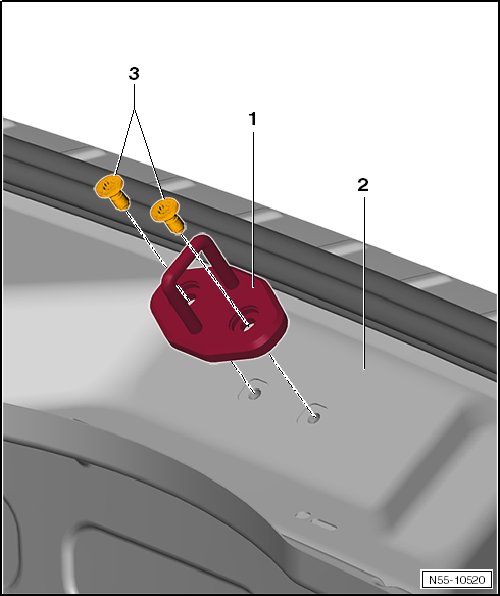

- Remove the lock carrier cover..

- Remove the bolts- 3 - and the striker pin - 1 -.

Installation

- Install the striker pin - 1 - on the lock carrier - 3 -.

- Screw - 3 - tightening specification: 18 Nm.

- Adjust the striker pin. Refer to => [ Rear Lid Striker Pin, Adjusting ] Rear Lid Striker Pin, Adjusting.
