Button Module for Split Folding Rear Seat Bench

Button Module for Split Folding Rear Seat Bench

• The button module for the split folding rear seat bench is inside the luggage compartment in the right side trim panel.

Removal

- Turn off the ignition and all electric consumers and remove the key.

- Remove the right side trim panel inside the luggage compartment..

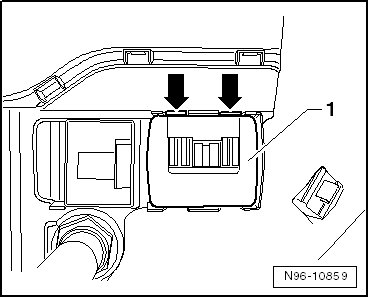

- Open the retainers - arrows - with a screwdriver and remove the button module for the split folding rear seat bench - 1 -.






Installation

Install in reverse order of removal.
