Rear Lid Control Module (J605)

Rear Lid Control Module (J605)

The rear lid control module is installed behind the rear lid trim panel, in the center under the rear window wiper motor.

Removal

- Turn off the ignition and all electric consumers and remove the key.

- Remove the lower rear lid trim panel..

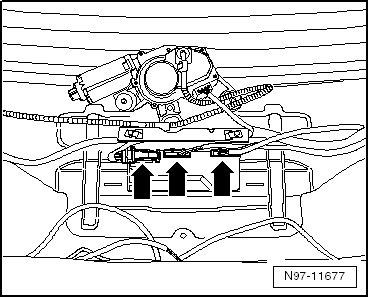

- Disconnect the connectors - arrows -.

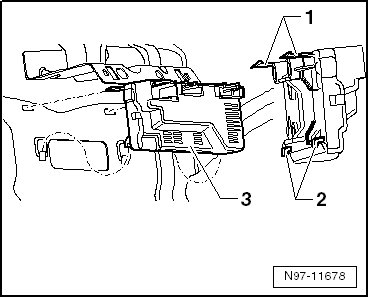

- Press both retainers - 1 - and disengage them from the holes in the rear lid.






- Unhook the lower hooks - 2 - and remove the rear lid control module - 3 -.

Installation

Install in reverse order of removal. Note the following:

• Code the new rear lid control module after installing it. Refer to => [ Rear Lid Control Module (J605), Coding ] Testing and Inspection.
