Insulation

Insulation

Removing






Perform the following:

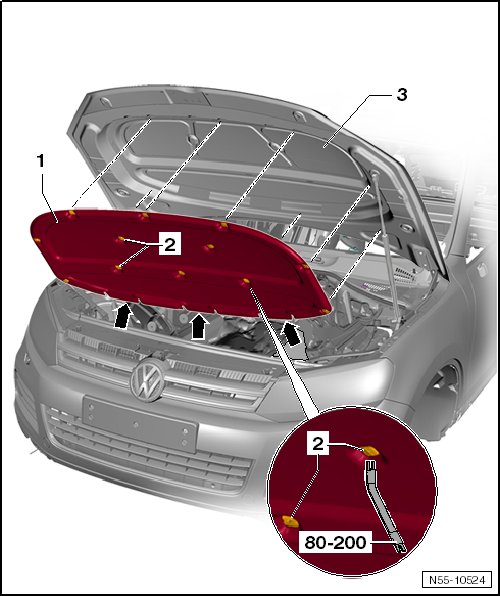

- Pry the retaining clips - 2 - out of the hood - 3 - with the pry lever (80-200).

- Remove the insulation - 1 - from the elongated holes - arrows -.

Installation






Perform the following:

• When installing the insulation - 1 -, be sure to install the retaining clips - 2 - with the wide side facing out.

- Slide the insulation - 1 - with the mounting tabs into the elongated holes - arrows -.

- Lock all retaining clips - 2 - in the hood - 3 -.
