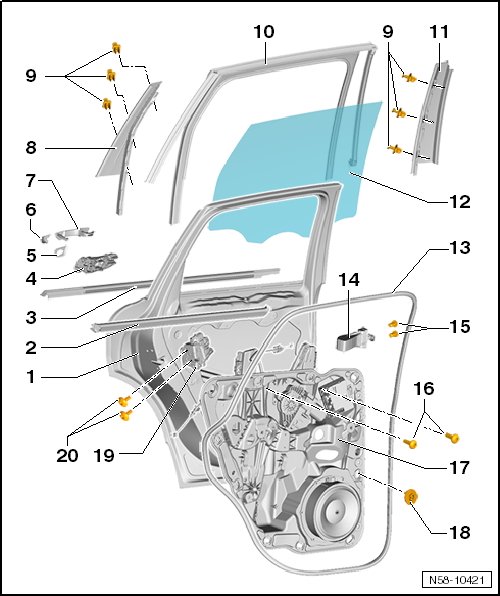

Rear Door Assembly Overview

Rear Door Assembly Overview






1 Door

• Removing and Installing, refer to => [ Rear Door ] Rear Door

2 Inner window recess seal

• Removing and Installing, refer to => [ Window Channel Seals ] Window Channel Seals

3 Outer window recess seal

• Removing and Installing, refer to => [ Window Channel Seals ] Window Channel Seals

4 Mounting bracket

5 Backing

6 Cover

7 Door handle

• Removing and Installing, refer to => [ Door Handle ] Door Handle

• Remove and install with the access/start authorization control module, refer to => [ Door Handle with the Access/Start Authorization Control Module ] Door Handle with the Access/Start Authorization Control Module

8 Trim

9 Clip

• Quantity: 3

10 Window guide

11 Trim

12 Door window

13 Outer door seal

• Removing and Installing, refer to => [ Outer Door Seal ] Outer Door Seal

14 Door strap

15 Bolt

• Quantity: 2

• 9 Nm

16 Bolt

• Quantity: 2

• 8 Nm

17 Subframe

• Removing and Installing, refer to => [ Subframe ] Subframe

18 Clip

19 Door lock

• Removing and Installing, refer to => [ Door Lock ] Door Lock

20 Bolt

• Quantity: 2

• Tightening specification: 20 Nm
