Controls, Housing: 30413

Special Tools

Special tools, testers and auxiliary items required

• Pipe Cutter (VAS 6056/2)

• Counterhold Tool Touareg V10 (T10172)

• Torque Wrench (40-200 Nm) (V.A.G 1332)

• Engine-/Gearbox Jack (V.A.G 1383 A)

• Spring Type Clip Pliers (VAS 5024 A)

• Setting Gauge (T10173)






• Shackle (10-222 A/12)






• Shop Crane - Load Cap = 700-1200 KG (VAS 6100)











Special tools, testers and auxiliary items required

• Torque Wrench (5-50 Nm) (V.A.G 1331)

• Used Oil Collecting and Extracting Device (V.A.G 1782)

• Vehicle Diagnosis, Testing and Information System (VAS 5051)

• Drip Tray for VAS 6100 (VAS 6208)

• Adapter for Oil Filling (VAS 6262 A)

• Adapter for Filling ATF Oil (VAS 6262/2)

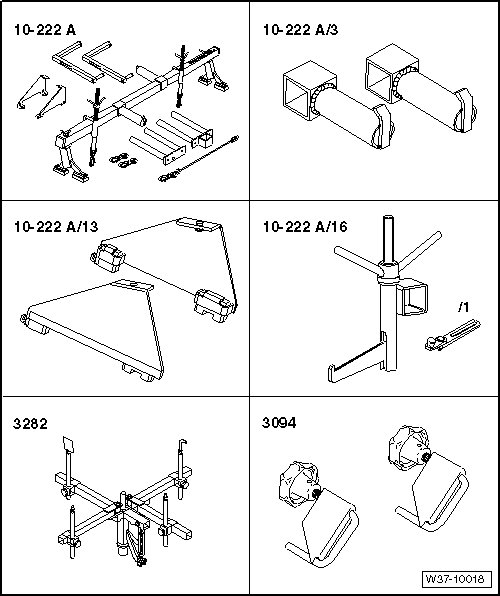

Special tools, testers and auxiliary items required

• Engine Support Bridge (10-222 A)

• Engine Support Adapter (10-222 A/3)

• Adapter (10-222 A/13)

• Adapter (10-222 A/16)

• Transmission Support (3282)

• Hose Clamps up to 25 mm Dia. (3094)






Special tools, testers and auxiliary items required

• Adjusting Plate (3282/56)

• Wedge Tool (T10161)

• Assembly Tool (T10071)

• Locating Pins (T10096)

• Bracket (T10013)

• Socket SW15 (V/175)
