Upper, Inner

Upper, Inner

- Switch off the ignition and all electrical consumers and remove the ignition key.

- Remove the headlamps:

• Headlamps with Halogen bulbs, refer to => [ Headlamps ] Headlamps.

• HID headlamps and cornering lamp, refer to => [ HID Headlamps With Cornering Lamp ] HID Headlamps With Cornering Lamp.

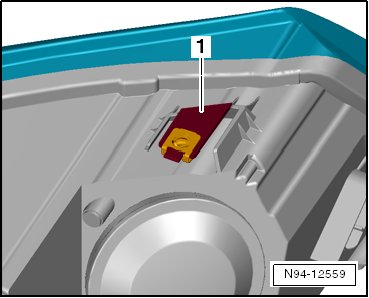

- Remove the tab - 1 - just far enough until the new tab is even.






- Mount the repair tab - B - on the bulb socket on the headlamp and tighten the 2 screws - A - to 0.5 Nm.






- Install the headlamp. Refer to => [ Headlamps ] Headlamps.

- Check the headlamp adjustment and adjust if necessary.
