Instrument Panel
Instrument Panel
Removing
- Disconnect the battery.
- Remove the steering column trim gap cover. Refer to => [ Steering Column Trim ] Service and Repair.
• It is not necessary to remove any more parts from the steering column trim.
- Remove the instrument cluster.
- Remove side instrument panel covers. Refer to => [ Instrument Panel Side Covers ] Instrument Panel Side Covers
- Remove upper trim on A-pillars. Refer to => [ Upper A-Pillar Trim ] Upper A-Pillar Trim
- Remove the glove compartment. Refer to => [ Glove Compartment ] Service and Repair
- Remove the center console cover. Refer to => [ Center Console Cover ] Center Console Cover
- Remove the trim on both sides of the footwell. Refer to => [ Footwell Trim ] Footwell Trim
- Remove the Electro-Mechanical Parking Brake Button (E538)
Vehicles with a Center Console without a Center Armrest
- Remove the center console, without center armrest. Refer to => [ Center Console without Armrest ] Center Console without Armrest
Vehicles with a Center Console with a Center Armrest
- Remove the DVD and/or CD player if present.
- If equipped, remove the mount for the "iPod" from "Apple".
- Remove the storage compartment with USB connection, if present.
- Remove the multi media system control module, if present.
Vehicles with Multi Media System
- Remove the multi media control head.
Vehicles with Converter with Socket, 12V, 230V (U13)
- Remove the converter with socket, 12 V-230 VV (U13).
- Remove the center console trim. Refer to => [ Center Console Trim ] Center Console Trim
- Remove the center console, with center armrest. Refer to => [ Center Console with Armrest ] Center Console with Armrest
All Vehicles
- Remove the headlamp switch (E1).
- Remove right trim panel on driver side. Refer to => [ Left Driver Side Trim Panel ] Left Driver Side Trim Panel
- Remove the telephone holder.
- Remove instrument panel center trim. Refer to => [ Center Instrument Panel Trim ] Center Instrument Panel Trim
- Remove the heat and A/C controls trim. Refer to => [ Heater and A/C Control Trim ] Heater and A/C Control Trim
Vehicles equipped with a radio system or a radio navigation system
- Remove the radio.
"Climatic" A/C System with Manual Control
- Remove the heater and air conditioning controls "Climatic".
"Climatronic" A/C System with Automatic Control
- Remove the A/C Display Control Head (E87) together with the Climatronic Control Module (J255).
Vehicles without A/C System
- Remove heater and ventilation controls.
All Vehicles
- Remove the lower trim on the instrument panel. Refer to => [ Lower Instrument Panel Trim ] Lower Instrument Panel Trim

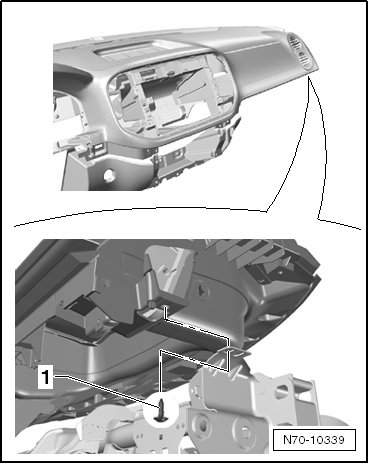

- Remove the bolt under the left vent - 1 - (2.5 +/- 0.5 Nm).

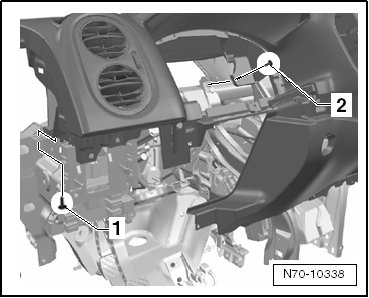

- Remove the instrument cluster bolt - 2 - (2.5 +/- 0.5 Nm).
- Remove the bolt under the right vent - 1 - (2.5 +/- 0.5 Nm).

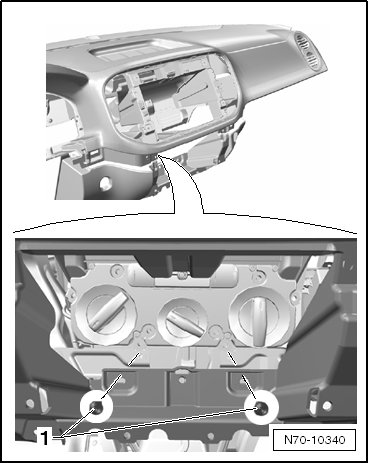

- Remove two screws - 1 - (2.5 +/- 0.5 Nm) above the tunnel.

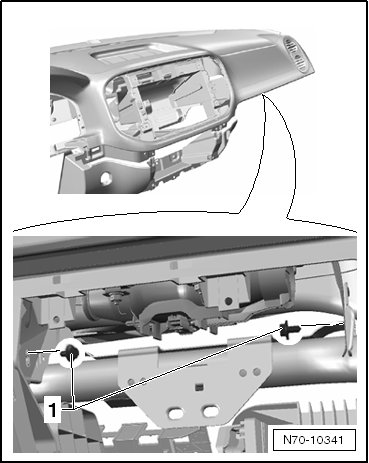

- Remove two bolts - 1 - (9 Nm) from the front passenger airbag.

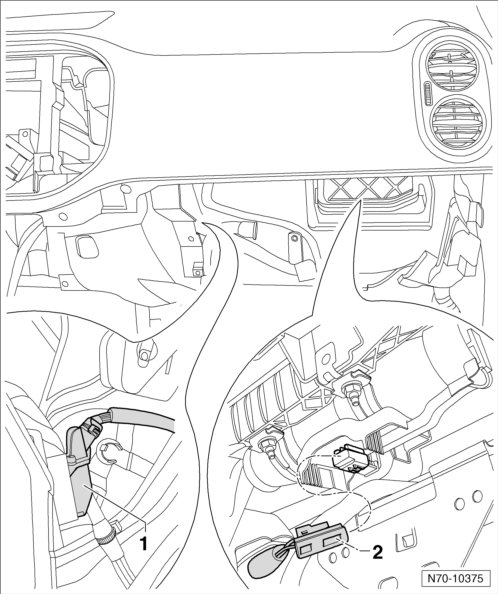

- Disconnect the connector - 1 - from the Headlamp Range Control Module (J431).
- Disconnect the connector - 2 - from the passenger airbag.

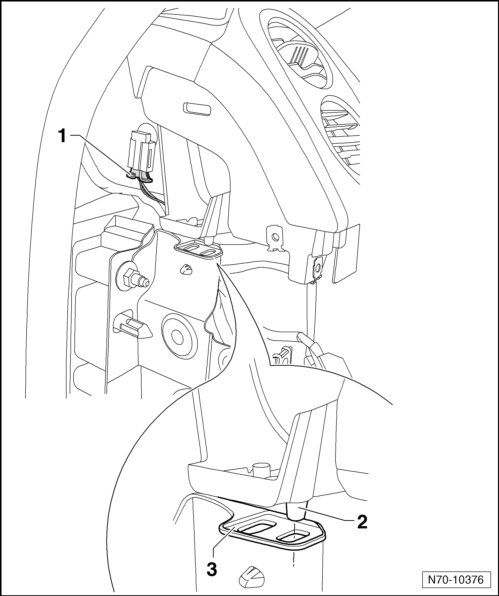

- Disconnect the connector - 1 - from the Left Vent Temperature Sensor (G150) , if equipped.
- Lift the instrument panel slightly until the side centering tabs - 2 - are above the mounting plate - 3 -.

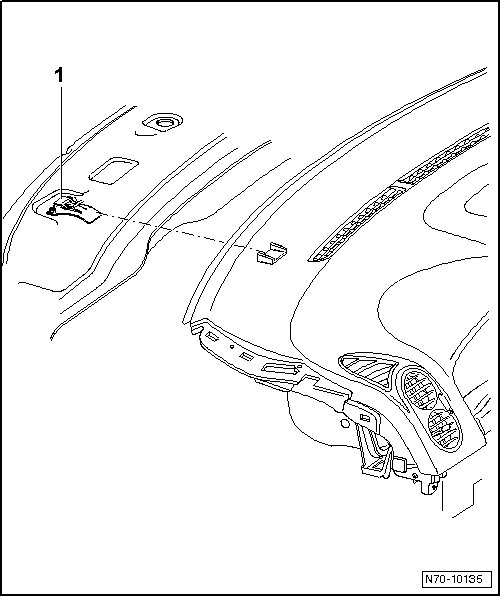

- Pull instrument panel out of mounts - 1 - in windshield transition area.
- Depending on vehicle equipment, disconnect the corresponding wiring harnesses and remove instrument panel from vehicle with a second mechanic.
Installing
- Install in reverse order of removal.
• When installing instrument panel, make sure that instrument panel is placed with exact fit into mounts - 1 -.
