Outer Rear Door Window Shaft Seal

Outer Rear Door Window Shaft Seal

Removing

• The outer window shaft strip has a metal insert in the center. If it gets bent, it will not possible to straighten it out again. It will remain "wavy".

• This why the window shaft strip must be removed evenly without bending it.

• The following describes removing and installing the left outer window shaft strip. Removing and installing the right outer window shaft strip is identical.






Perform the following:

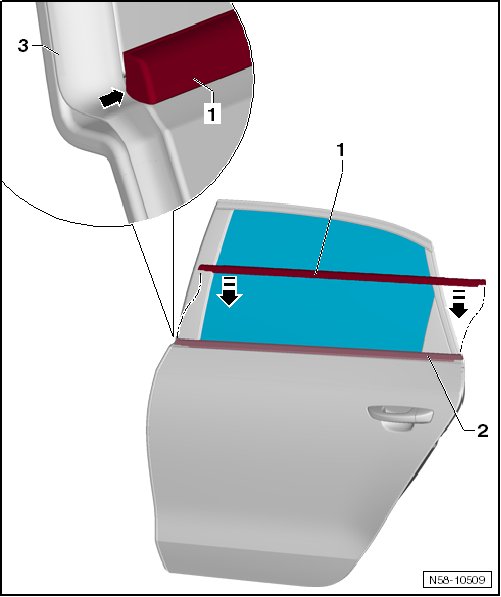

- Remove the outer window shaft strip - 1 - evenly - arrows - from the flange - 2 -.

Installation






• The window guide - 3 - be in front of the outer window shaft strip - arrow -.

- Install the window shaft strip starting at the B-pillar joint.

- Align the outer window shaft strip - 1 - flush with the joint and then press it onto the flange - 2 - working toward the rear.
