Outer Front Door Window Shaft Seal

Outer Front Door Window Shaft Seal

Removing

• The outer window shaft strip has a metal insert in the center.

• If it gets bent, it will not possible to straighten it out again. It will remain "wavy".

• This why the window shaft strip must be removed evenly without bending it.

• The following describes removing and installing the right outer window shaft strip. Removing and installing the left outer window shaft strip is identical.






- Remove the exterior rearview mirror with the electric control. Refer to => [ Exterior Rearview Mirror ] Exterior Rearview Mirror.

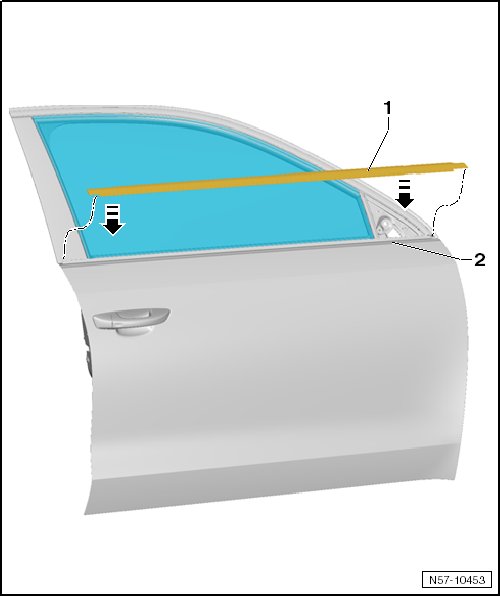

- Remove the outer window shaft strip - 1 - from the door flange - 2 - in - direction of arrow -.

Installation






- Do not use any impact tools to install the outer window shaft strip - 1 -.

• It is permissible to use assembly aids.

- Align the outer window shaft strip - 1 - on the B-pillar and then push it evenly onto the flange - 2 - in - direction of arrow -.

• It is permissible to use assembly aids.

- Install the exterior rearview mirror with the electric control. Refer to => [ Exterior Rearview Mirror ] Exterior Rearview Mirror.
