Inner Front Door Window Shaft Seal

Inner Front Door Window Shaft Seal

• The following describes removing and installing the left inner window shaft strip. Removing and installing the right inner window shaft strip is identical.

Removing






- Remove the front door trim panel.

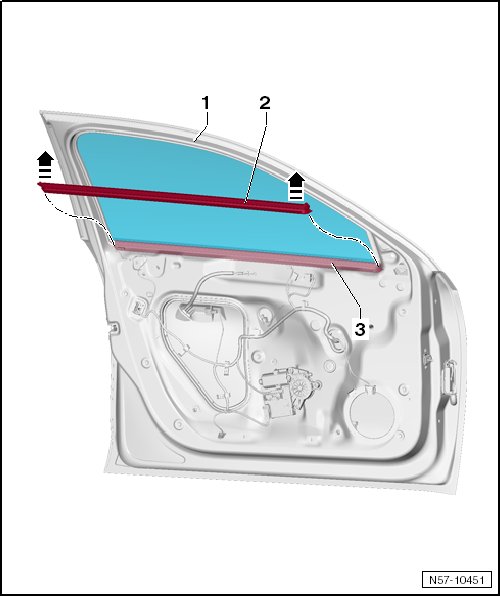

- Remove the inner window shaft strip - 2 - evenly from the flange - 3 -on the front door - 1 - in - direction of arrow - without bending it.

Installation

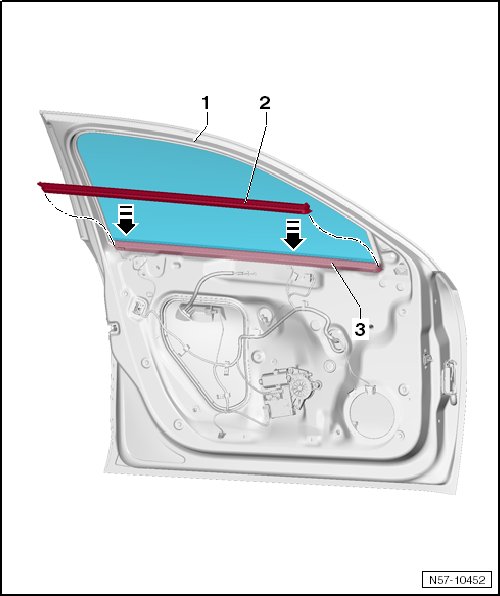

- Press the inner window shaft strip - 2 - evenly onto the flange - 3 - on the front door - 1 - starting at the B-pillar.

- Remove the front door trim panel.
