Component location fuse holder C -SC-
Fuses

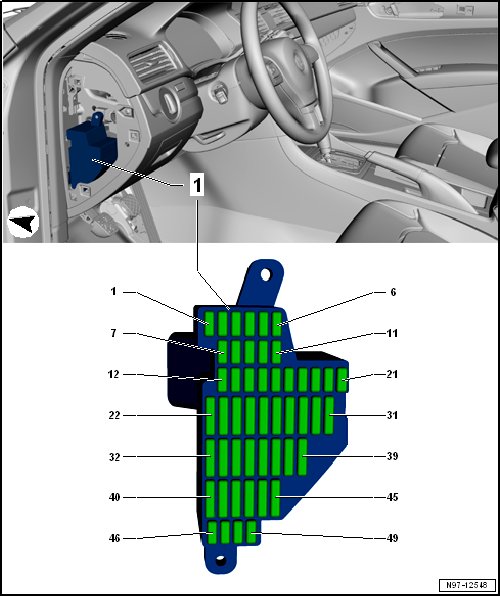

Component location fuse holder C -SC-
1 - Fuse panel C -SC-
Fuse colors, SC22 through SC45
• 40 A - orange
• 30 A - bright green
• 25 A - natural (white)
• 20 A - yellow
• 15 A - light blue
• 10 A - red
• 7.5 A - brown
• 5 A - light brown
Fuse colors, SC1 through SC21, SC46 through SC49
• 20 A - yellow
• 15 A - light blue
• 10 A - red
• 7.5 A - brown
• 5 A - light brown
• 3 A - purple
