Fastener Tightening Specifications

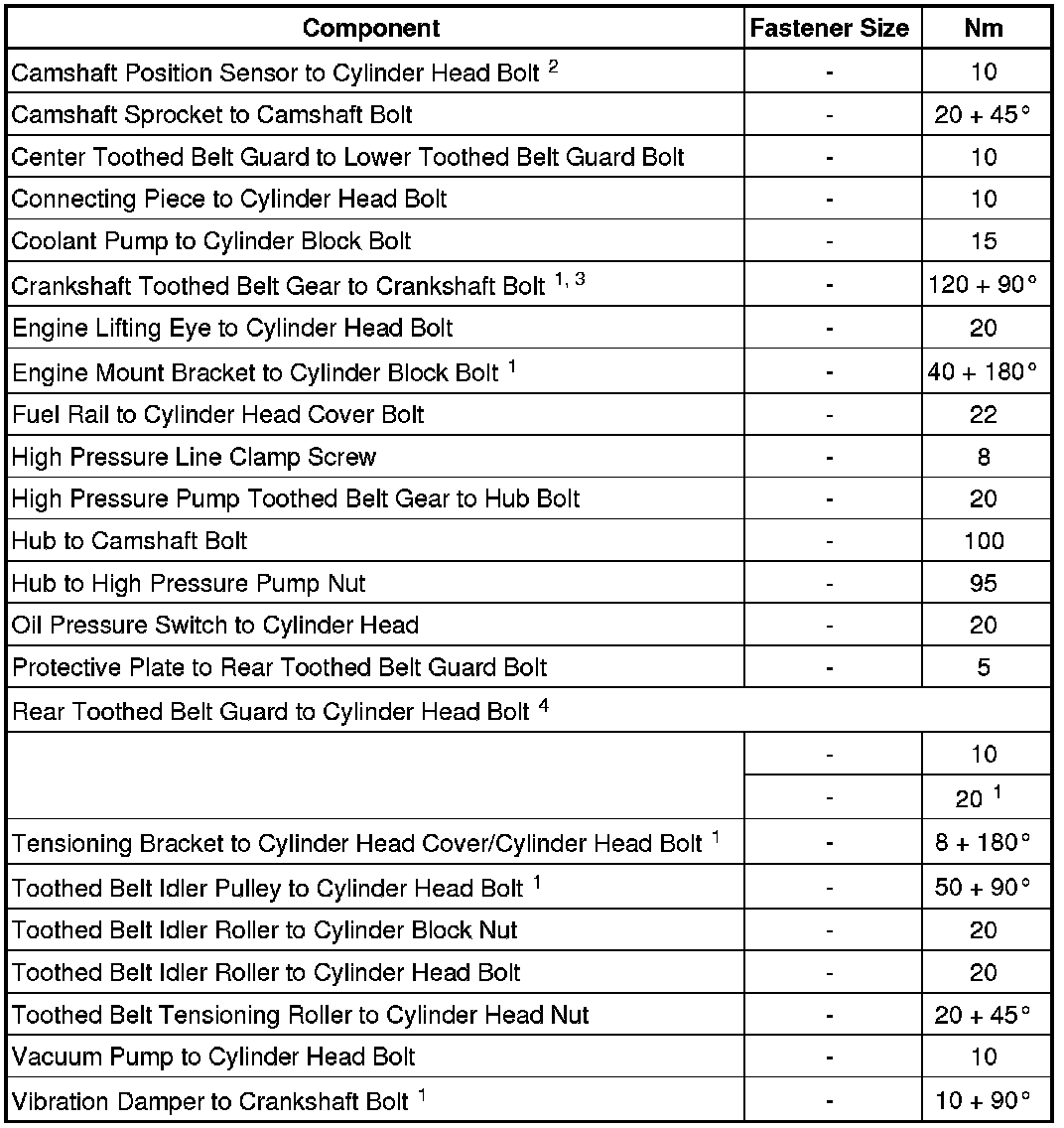

Fastener Tightening Specifications






• 1 Always replace

• 2 Install using locking compound, refer to the Parts Catalog

• 3 Do not lubricate or grease the threads or collar

• 4 For bolt clarification, see items 14 and 15 in => [ Toothed Belt Drive Overview ] Toothed Belt Drive Overview

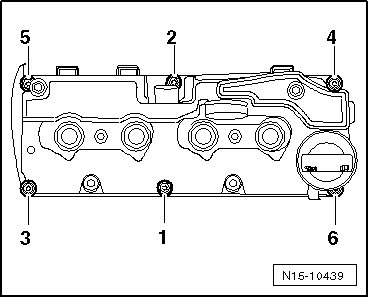

Cylinder Head Cover Bolt Tightening Sequence and Specification






- Tighten the cylinder head cover bolts in sequence - 1 through 6 - to 9 Nm.

Cylinder Head Bolt Tightening Sequence and Specification






• Replace the cylinder head bolts.

- Tighten the bolts in 4 steps in the sequence shown:






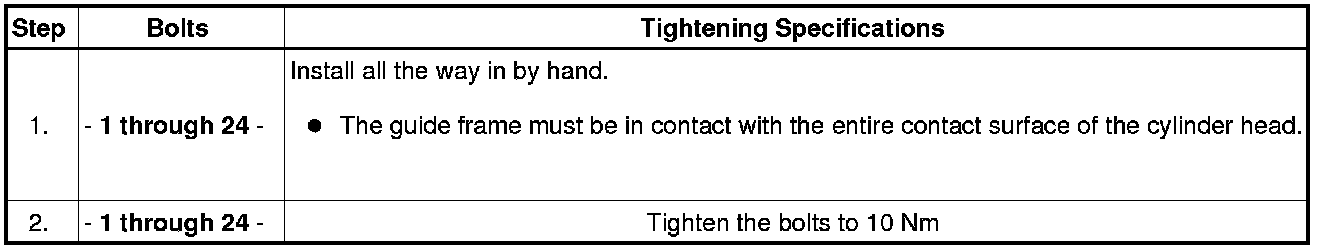

Bearing Frame Bolt Tightening Sequence and Specification






- Tighten the bolts in 2 steps in the sequence shown:
