Fuel Injector Seal

Fuel Injector Seal

Special tools, testers and auxiliary items required

• Support (3390)

Procedure






- Remove the cylinder head cover. Refer to => [ Cylinder Head Cover ] Cylinder Head Cover.

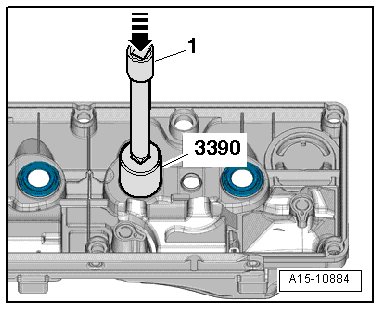

- Remove the fuel injector seal using the support (3390) and a short extension - 1 - upward from below.

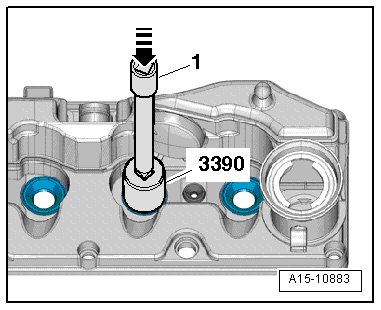

- Install the new fuel injector seal using the support (3390) and a short extension - 1 - all the way, from above.






- Install the cylinder head cover. Refer to => [ Cylinder Head Cover ] Cylinder Head Cover.
