Diagram 5/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

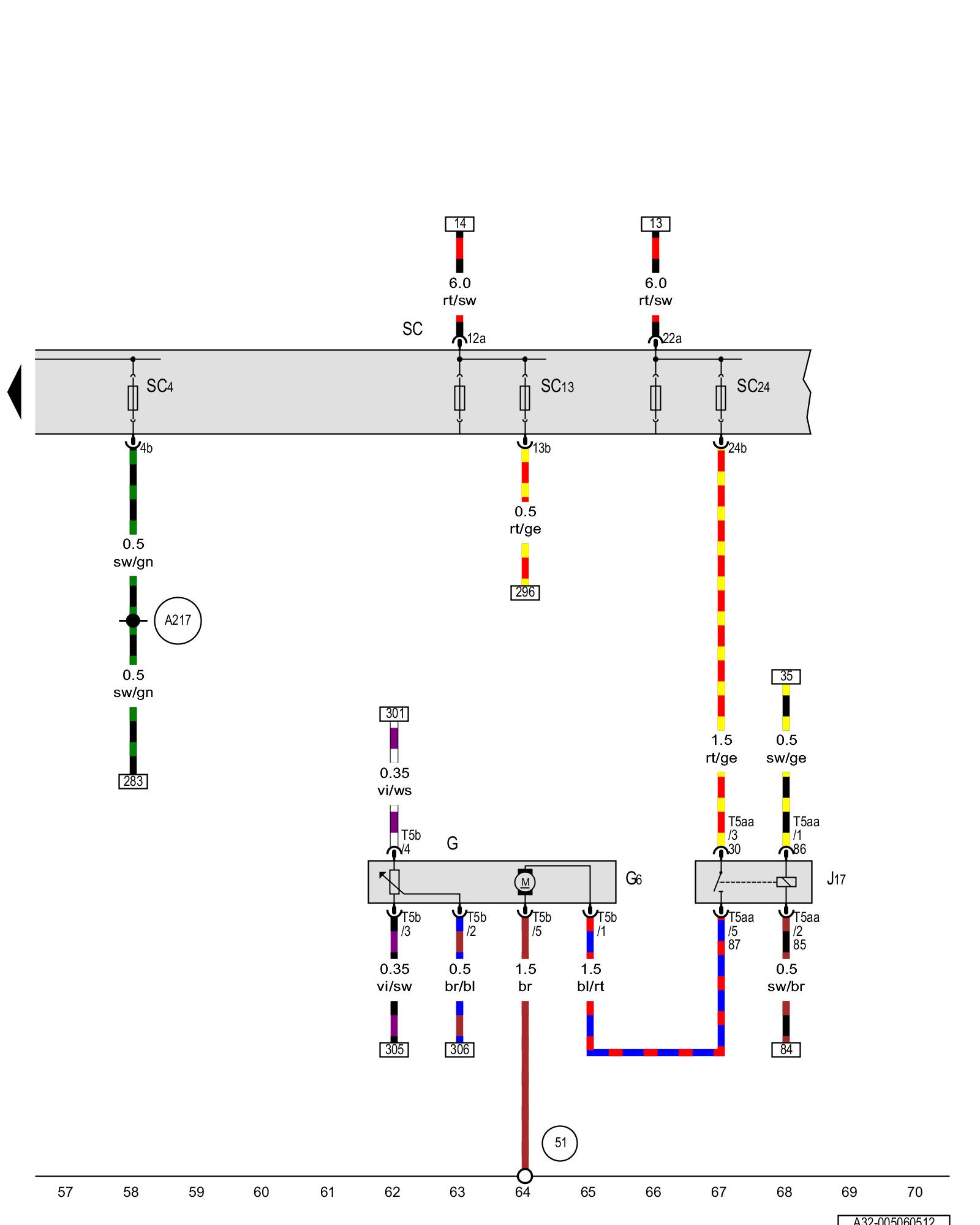

Fuel level sensor, Transfer fuel pump, Fuel pump relay, Fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G - Fuel level sensor Locations

G6 - Transfer fuel pump Locations Fuel delivery unit -GX1- / Transfer fuel pump -G6-

J17 - Fuel pump relay Overview Of Relay Carrier

SC - Fuse panel C Overview of fuse holder

SC4 - Fuse 4 (on fuse panel C) Overview of fuse holder

SC13 - Fuse 13 (on fuse panel C) Overview of fuse holder

SC24 - Fuse 24 (on fuse panel C) Overview of fuse holder

T5aa - 5-pin connector

T5b - 5-pin connector

(51) - Ground connection in luggage compartment, right Locations

(A217) - Positive connection 8 (15a) (in instrument panel wiring harness)
