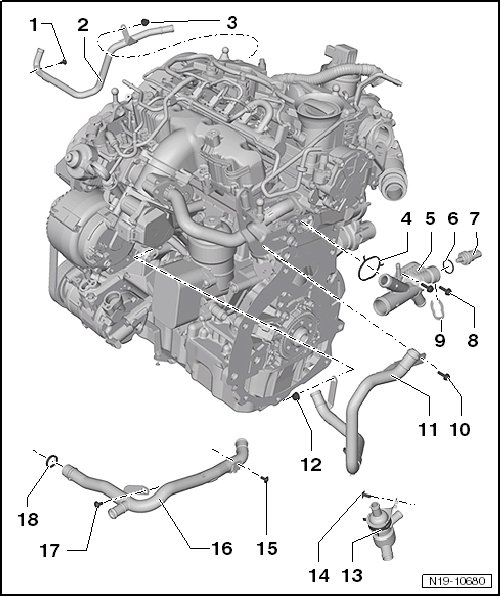

Coolant Pipes Overview

Coolant Pipes Overview






1 Bolt

• 20 Nm

2 Rear Coolant Pipe

• Removing and installing, refer to => [ Rear Coolant Pipe ] Rear Coolant Pipe.

3 Nut

• 25 Nm

4 O-ring

• Always replace.

5 Connecting Piece

• For the coolant hoses.

6 O-ring

• Always replace

7 Engine Coolant Temperature Sensor (G62)

• Removing and installing, refer to => [ Engine Coolant Temperature Sensor G62 ] Engine Coolant Temperature Sensor G62.

8 Bolt

• 9 Nm

• Quantity: 2

9 Retaining Clip

10 Bolt

• 9 Nm

11 Front Coolant Pipe

• Removing and installing, refer to => [ Front Coolant Pipe ] Front Coolant Pipe.

12 Nut

• 9 Nm

13 Engine Preheating Element (Z97)

14 Bolt

• 8 Nm

15 Bolt

• 9 Nm

16 Left Coolant Pipe

• Removing and installing, refer to => [ Left Coolant Pipe ] Left Coolant Pipe.

17 Bolt

• 8 Nm

• Quantity: 2

18 O-ring

• Always replace.
