Tail Lamp Bulb In Side Panel

Tail Lamp Bulb In Side Panel

• Turn off the ignition and all electrical consumers.

• Remove the key.

Removing

• The illustrations show removing and installing on the right side. The procedure for removal and installation on the left side is the same.

- Remove the side panel tail lamps. Refer to => [ Tail Lamps in Side Panel ] Tail Lamps in Side Panel.

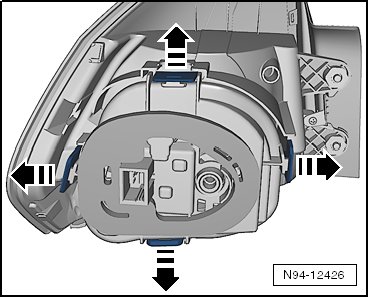

- Release the catches in - direction of arrow - and remove the bulb holder from the tail lamp housing.

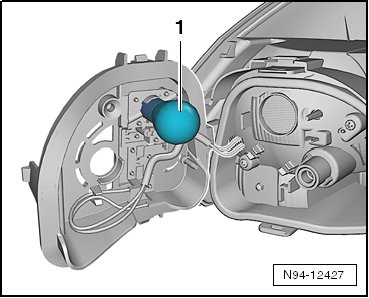

- Push the right brake lamp/turn signal/tail lamp bulb - 1 - into the socket, turn it to the left and remove it from the bulb holder.






Installing

Install in reverse order of removal.
