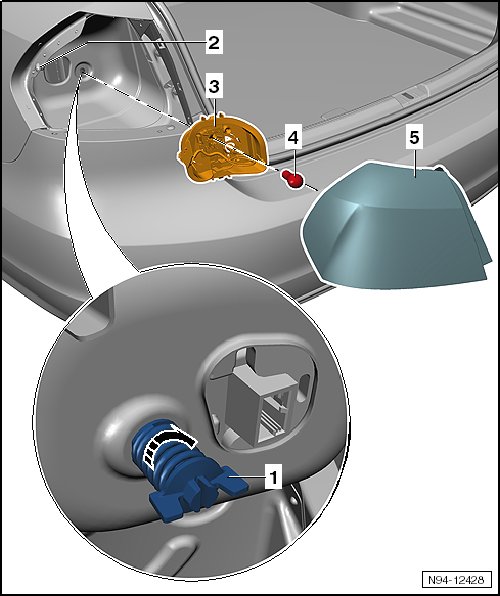

Side Panel Tail Lamps Overview

Side Panel Tail Lamps Overview






1 Tail Lamp Housing Bolt

• 2 Nm

2 Guide On The Side Panel

3 Bulb Holder

4 Bulb, 12V, PY21W

Right side

• Right brake/turn signal/tail lamp (M70)

Left side

• Left brake/turn signal/tail lamp (M69)

• Removing and installing, refer to => [ Tail Lamp Bulb In Side Panel ] Tail Lamp Bulb In Side Panel.

5 Tail Lamps In Side Panel

• With left rear side marker lamp bulb (M37) or right rear side marker lamp bulb (M38).

The entire tail lamp assembly must replaced if the left rear side marker lamp bulb or right rear side marker lamp bulb is faulty.

• Removing and installing, refer to => [ Tail Lamps in Side Panel ] Tail Lamps in Side Panel.
