Horn: Service and Repair

Horns

• Turn off the ignition and all electrical consumers.

• Remove the key.

Removing

- Remove the noise insulation.

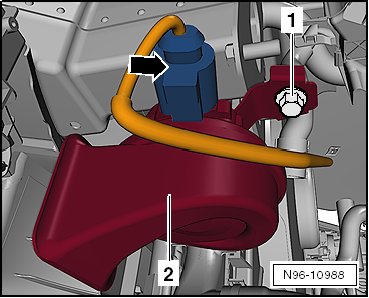

- Disconnect the connector - arrow -.






- Remove the bolt - 1 - and the horn - 2 - with the bracket.

Installing

- Installation is performed in the reverse order of removal. Note the following:

• Make sure the horn is not touching any other components when around it when installing.

- Tighten the bolt - 1 - to 20 Nm.
