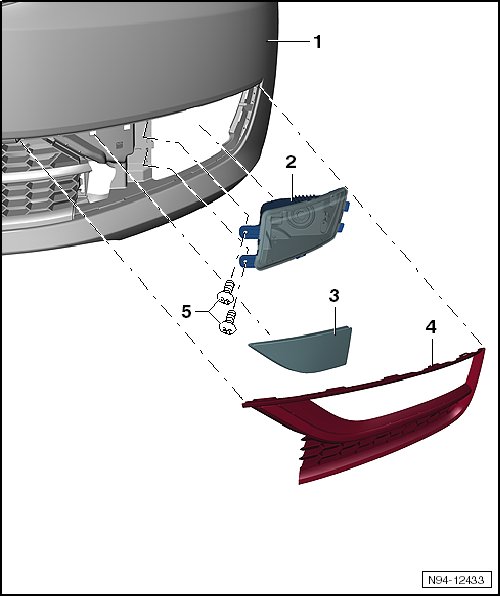

Fog Lamps Overview

Fog Lamps Overview






1 Front Bumper Cover

2 Fog Lamp Housing

• With left fog lamp bulb (L22) / right fog lamp bulb (L23).

• Fog Lamp, removing and installing, refer to => [ Fog Lamp ] Fog Lamp.

• Fog lamp bulb and static cornering lamp, removing and installing, refer to => [ Fog Lamp Bulb and Static Cornering Lamp ] Fog Lamp Bulb and Static Cornering Lamp.

3 Reflector Trim

4 Divider

5 Screw

• 2 Nm
