Fog Lamp

Fog Lamp

• The following illustrations depict removal and installation of left fog lamp.

• Turn off the ignition and all electrical consumers.

• Remove the key.

Removing

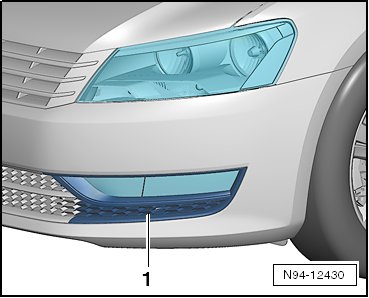

- Remove the trim - 1 -.






- Remove the spoiler from the front bumper cover.

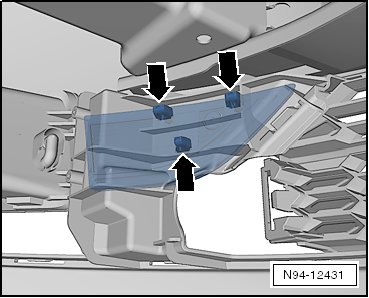

- Squeeze the clips - arrows - and remove the reflector trim => [ (Item 3) Reflector Trim ] Fog Lamps Overview toward the outside.

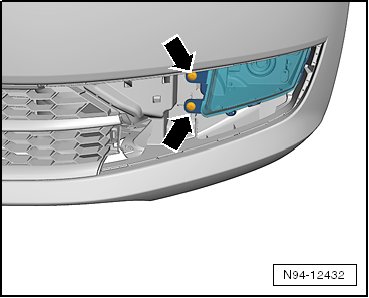

- Remove the bolts - arrow -.






- Remove the fog lamp housing from the bumper cover in - direction of arrow -. Pay attention to the wires still connected.

- Disconnect the connector.

Installing

Install in reverse order of removal. Note the following:

- Tighten the threaded connections to the tightening specification. Refer to => [ Fog Lamps Overview ] Fog Lamps Overview.

- Check and adjust the fog lamp adjustment.
