Tire Pressure Monitoring Display Button (E492)

Tire Pressure Monitoring Display Button (E492)

• Turn off the ignition and all electrical consumers.

• Remove the key.

• When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool ( trim removal wedge (3409) , screwdriver) will be positioned using commercially available adhesive tape.

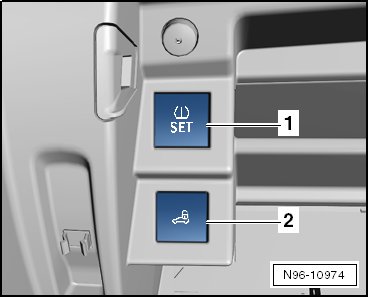

The tire pressure monitoring display button - 1 - is located in the glove compartment.






Removing

- Remove the glove compartment.

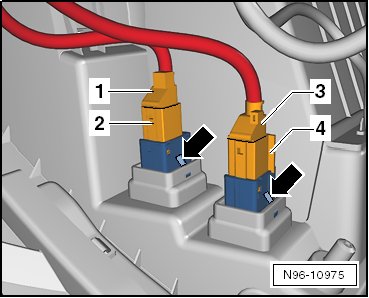

- Disconnect the connector - 3 -.






- Open the tabs (top and bottom) - arrow - and remove the tire pressure monitoring display button - 4 -.

Installing

Install in reverse order of removal.
