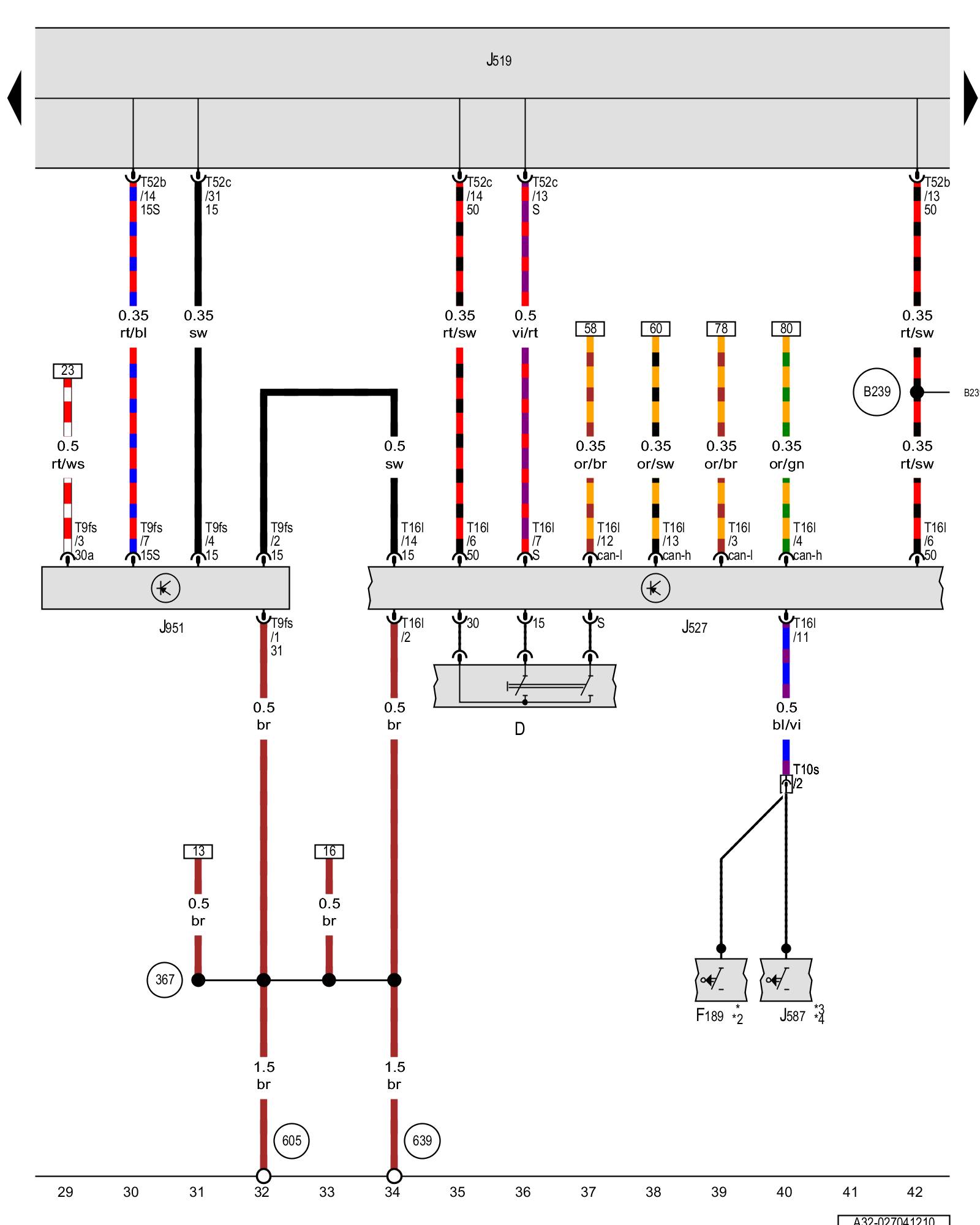

Diagram 27/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Steering column electronics control module, Heating, ventilation and air conditioning relay via remote start





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

D - Ignition/starter switch

F189 - tiptronic switch

J519 - Vehicle electrical system control module Locations

J527 - Steering column electronics control module Locations

J587 - Selector lever sensor system control module

J951 - Heating, ventilation and air conditioning relay via remote start Overview Of Relay Carrier

T9fs - 9-pin connector

T10s - 10-pin connector

T16l - 16-pin connector Locations

T52b - 52-pin connector

T52c - 52-pin connector

(367) - Ground connection 2 (in main wiring harness)

(605) - Ground connection on upper steering column Locations

(639) - Ground connection on left A-pillar Locations

(B239) - Positive connection 1 (50) (in interior wiring harness)

* - Only for vehicles with automatic transmission

*2 - Refer to applicable wiring diagram for automatic transmission

*3 - Only for vehicles with DSG transmission

*4 - Refer to applicable wiring diagram for DSG transmission
