Diagram 28/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

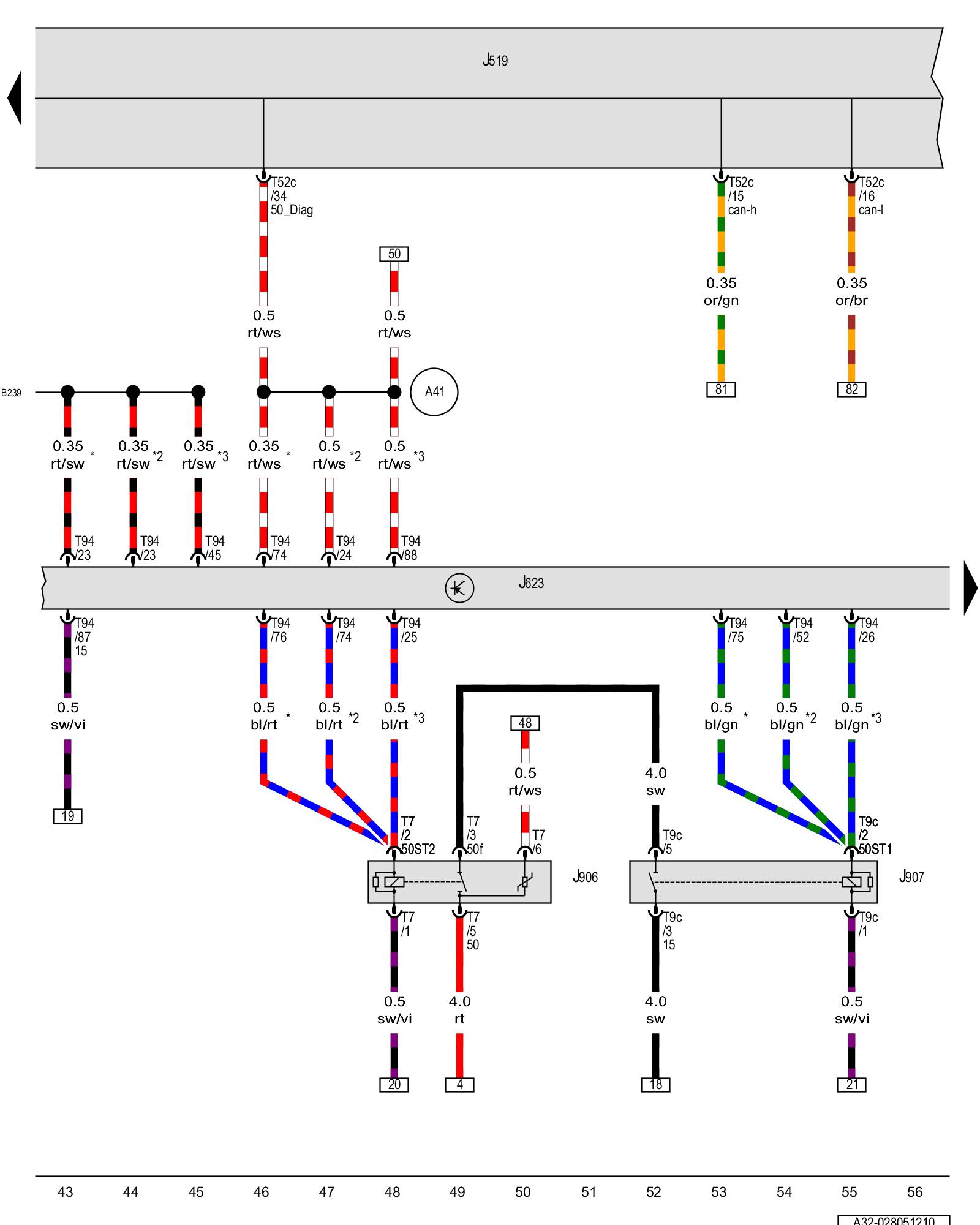

Vehicle electrical system control module, Engine control module, Starter relay 1, Starter relay 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Locations

J623 - Engine control module Locations

J906 - Starter relay 1 Overview Of Relay Carrier

J907 - Starter relay 2 Overview Of Relay Carrier

T7 - 7-pin connector

T9c - 9-pin connector

T52c - 52-pin connector

T94 - 94-pin connector Locations

(A41) - Positive connection (50) (in instrument panel wiring harness)

(B239) - Positive connection 1 (50) (in interior wiring harness)

* - Only for vehicles with gasoline engine

*2 - Only in vehicles with 6-cylinder engine

*3 - Only for vehicles with diesel engines

Previous Diagram 28/4 (Tracks 29-42)

Next Diagram 28/6 (Tracks 57-70)
