Diagram 28/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

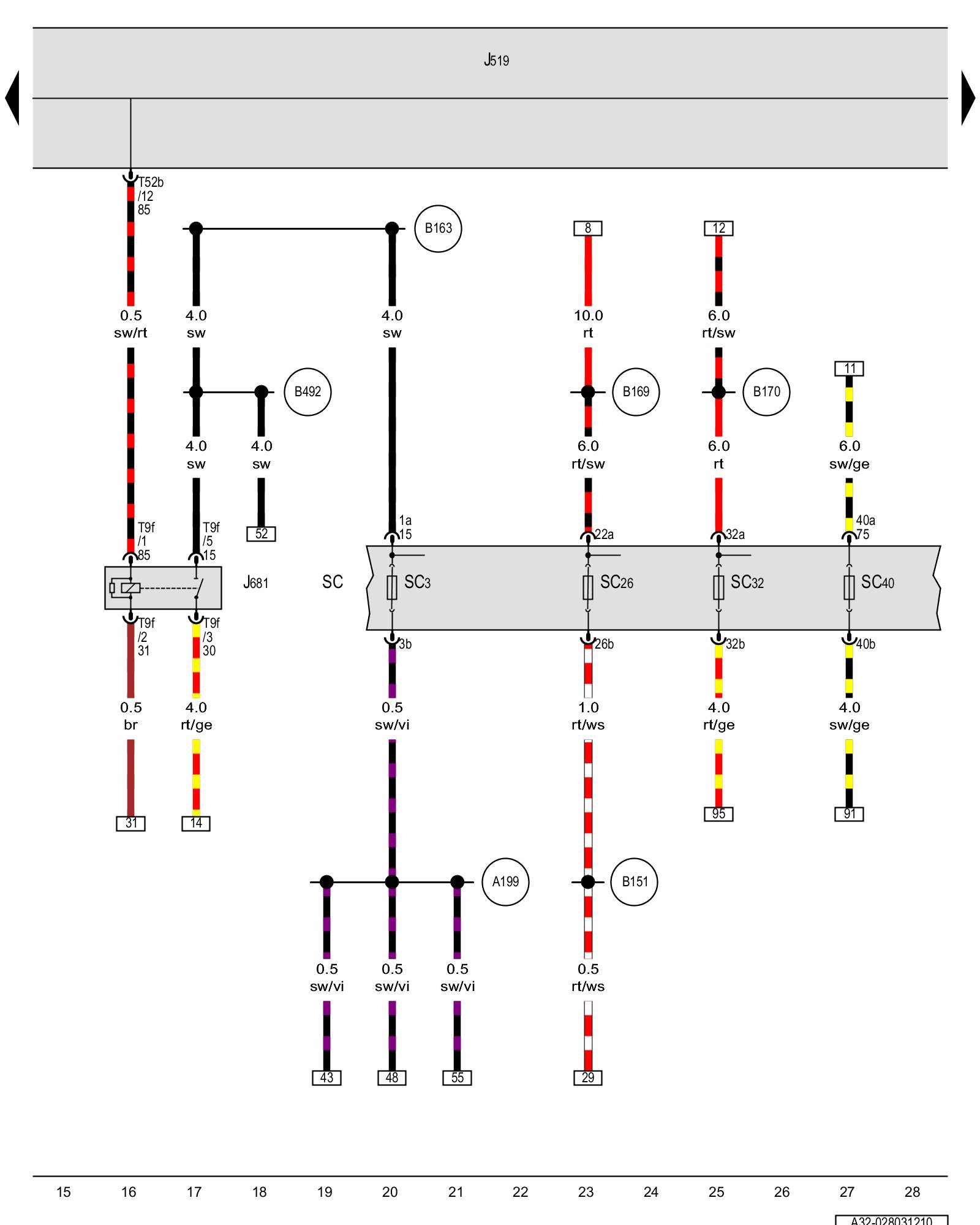

Vehicle electrical system control module, Terminal 15 power supply relay 2, Fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Locations

J681 - Terminal 15 power supply relay 2 Overview Of Relay Carrier

SC - Fuse panel C Overview of fuse holder

SC3 - Fuse 3 (on fuse panel C) Overview of fuse holder

SC26 - Fuse 26 (on fuse panel C) Overview of fuse holder

SC32 - Fuse 32 (on fuse panel C) Overview of fuse holder

SC40 - Fuse 40 (on fuse panel C) Overview of fuse holder

T9f - 9-pin connector

T52b - 52-pin connector

(A199) - Positive connection 4 (15a) (in instrument panel wiring harness)

(B151) - Positive connection 3 (30a) (in interior wiring harness)

(B163) - Positive connection 1 (15) (in interior wiring harness)

(B169) - Positive connection 1 (30) (in interior wiring harness)

(B170) - Positive connection 2 (30) (in interior wiring harness)

(B492) - Positive connection 3 (15) (in interior wiring harness)

Previous Diagram 28/2 (Tracks 1-14)

Next Diagram 28/4 (Tracks 29-42)
