Diagram 34/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

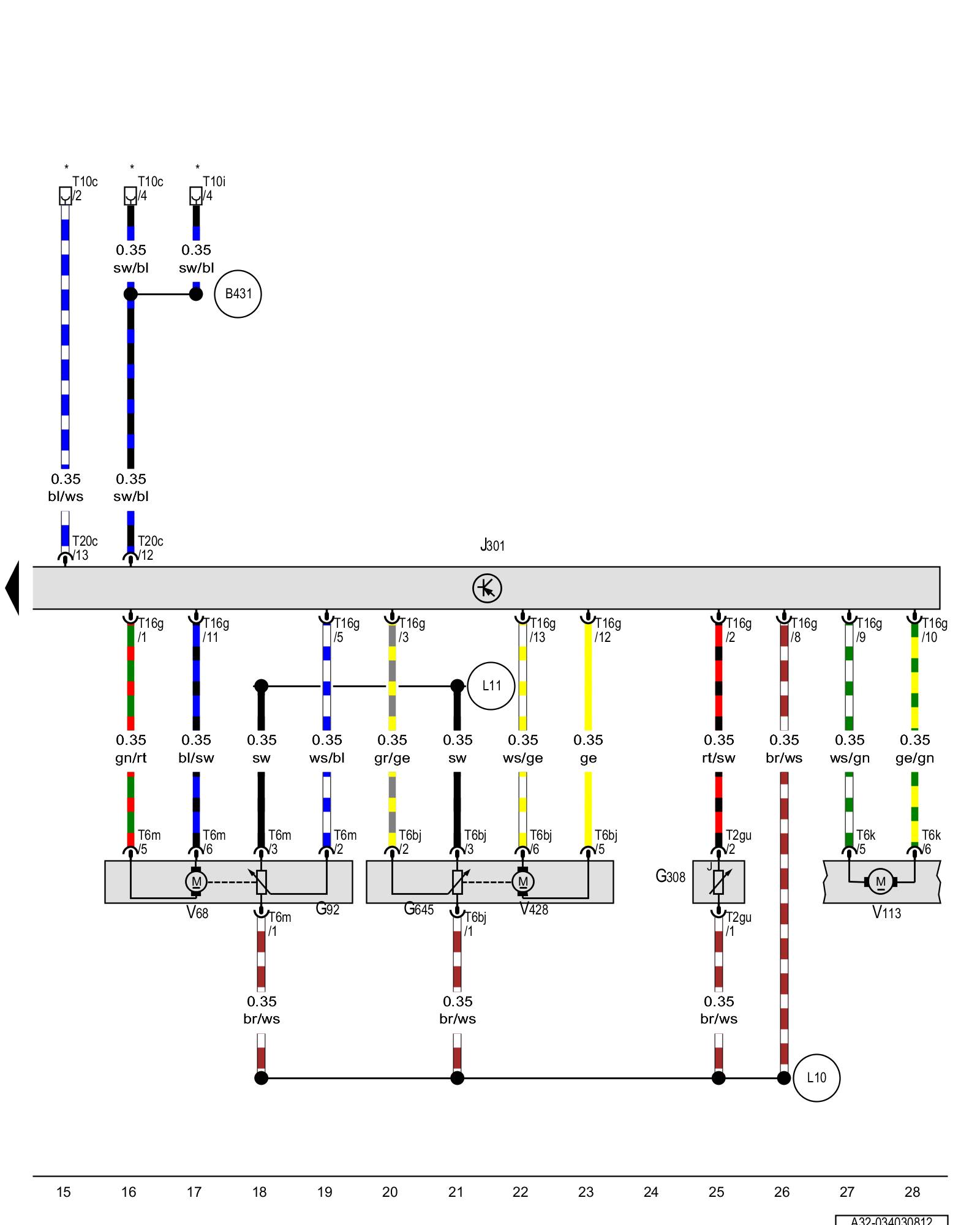

Temperature regulator door motor position sensor, Evaporator temperature sensor, A/C control module, Recirculation door motor, Air distribution door motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G92 - Temperature regulator door motor position sensor

G308 - Evaporator temperature sensor Locations [1][2]Diagrams

G645 - Air distribution door motor position sensor Air Distribution Door Motor -V428- and Air Distribution Door Motor Position Sensor -G645-

J301 - A/C control module Locations A/C Control Module -J301-

T2gu - Double connector

T6bj - 6-pin connector

T6k - 6-pin connector

T6m - 6-pin connector

T10c - 10-pin connector, under the driver seat

T10i - 10-pin connector, Coupling point under the front passenger seat

T16g - 16-pin connector

T20c - 20-pin connector

V68 - Temperature regulator door motor Temperature Regulator Door Motor -V68- and Left Temperature Door Potentiometer / Actuator -G220-

V113 - Recirculation door motor [1][2]Air Door Actuator / Motor, HVAC

V428 - Air distribution door motor Air Distribution Door Motor -V428- and Air Distribution Door Motor Position Sensor -G645-

(B431) - Seat heating connection (in main wiring harness)

(L10) - Connection 2 (in A/C system wiring harness)

(L11) - Connection 3 (in A/C system wiring harness)

* - Refer to the applicable heated seats wiring diagram

Previous Diagram 34/2 (Tracks 1-14)
