Crankshaft, Cylinder Block

Special Tools

Special tools, testers and auxiliary items required

• Drift (VW 207 C)

• Kukko Extractor 14.5-18.5 mm (21/2)

• Adapter (T10055/3)

• Assembly Tool (T10134)

• Tool Insert AF 24 (V.A.G 1332/11)

• Locking Pin (T10060 A)






• Flywheel Retainer (3067)






• Puller (T10055)






• Centering Mandrel (3176)

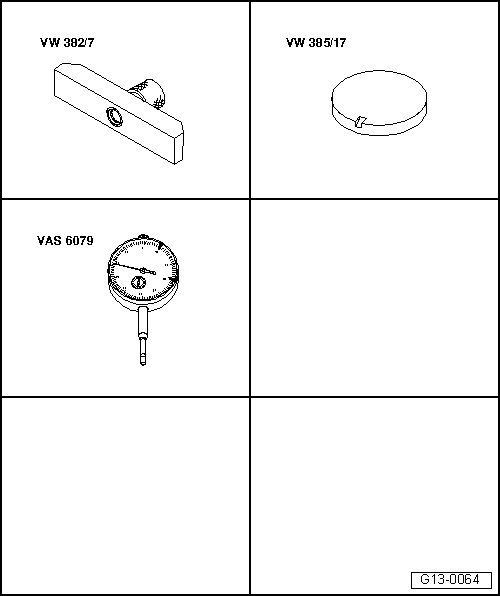

Special tools, testers and auxiliary items required

• Measuring Bar (VW 382/7)

• Magnetic Plate 50 mm Dia. (VW 385/17)

• Dial Gauge 0-10 mm (VAS 6079)






Special tools, testers and auxiliary items required

• Seal Remover (3203)

• Counter Holder (3415)

• Assembly Tool (T10053)

• Torque Wrench (5-50 Nm) (V.A.G 1331)

• Torque Wrench (40-200 Nm) (V.A.G 1332)
