Engine Lubrication: Specifications

Fastener Tightening Specifications






• 1 Always replace

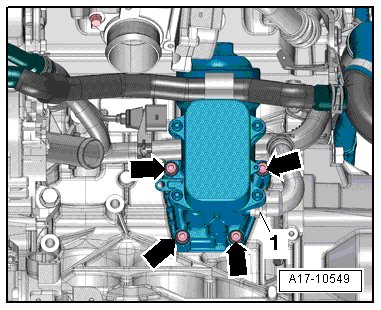

Oil Filter Bracket Bolt Tightening Sequence and Specification






• Replace the oil filter bracket bolts.

- Install the upper left bolt and the lower right bolt.

- Tighten the bolts in 2 steps:






Oil Pan Bolt Tightening Sequence and Specification






• Replace the oil pan bolts.

- Tighten the bolt in 3 steps:

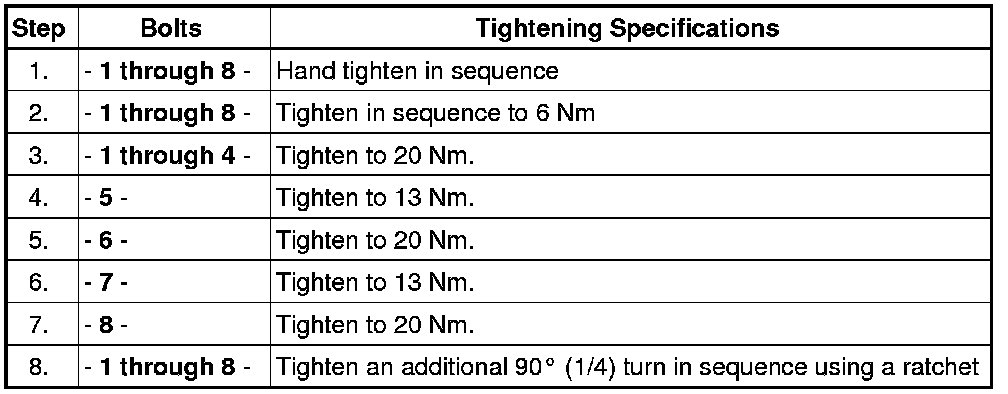

Balance Shaft Module, with 8 Bolts, Tightening Sequence and Specification

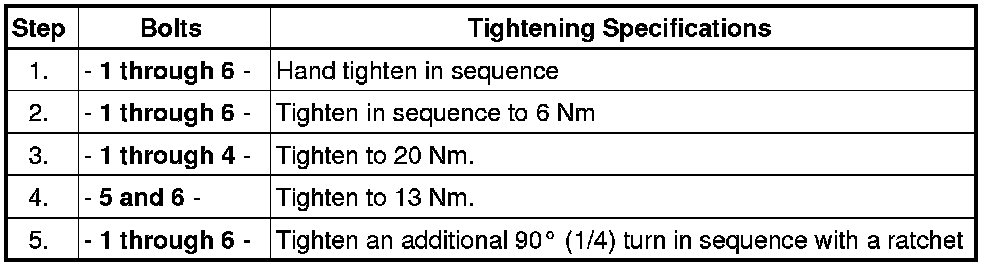

Balance Shaft Module, with 6 Bolts, Tightening Sequence and Specification
