Cylinder Head Assembly: Tools and Equipment

Special Tools

Special tools, testers and auxiliary items required

• Adapter (V.A.G 1763/8)

• Guide Plate for 3.0L TDI engine (VAS 5161/23)

• Drip Tray for VAS 6100 (VAS 6208)

• Counterhold Tool (T10172)

• Special Wrench, Long Reach (T10264)

• Locking Tool (T10265)

• Oil Seal Driver (10-203)

• Seal Extractor (3240)

• Puller (T10443)

• Camshaft Fitting Tool (T40094)

• Camshaft Fitting Tool (T40095)

• Camshaft Fitting Tool (T40096)

• Pry Lever-Rmv Outside Mirror (80-200)

• Compression Tester (V.A.G 1763)






• Dial Gauge Holder (VW 387)






• Dial Gauge 0-10 mm (VAS 6079)






• Support (3390)






• Hose Clip Pliers (VAS 6340)

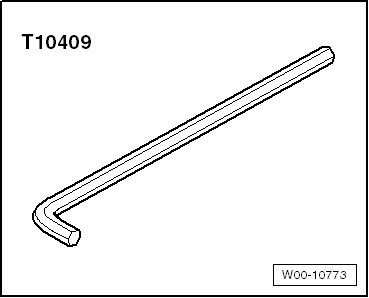

• Special Wrench, Long Reach SW 8 (T10409)






• Torque Wrench (5-50 Nm) (V.A.G 1331)






• Torque Wrench (40-200 Nm) (V.A.G 1332)

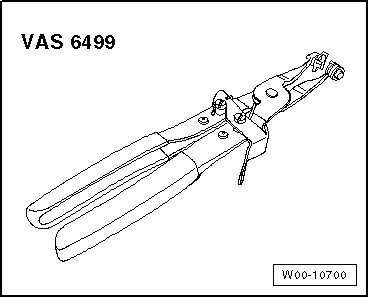

• Spring-Type Clip Pliers (VAS 6499)






• Socket Insert AF 12 for Glow Plugs 4-Cyl.TDI CR (VAS 6454)











Special tools, testers and auxiliary items required

• Guide Pins & Handle - 1112 MM (3070)

• Diesel Injection Pump Locking Pin (3359)

• Crankshaft Stop (T10050)

• Camshaft Gear Counter-Holder (T10051)

• Puller (T10052)

• Socket Insert XZN 10 (T10385)






Special tools, testers and auxiliary items required

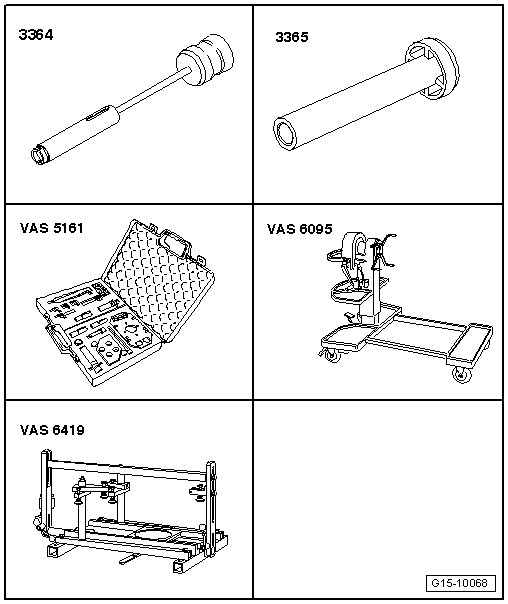

• Valve Seal Removal Tool (3364)

• Valve Stem Seal Driver (3365)

• Valve Cotters Asm/Disasm Device (VAS 5161)

• Engine and Transmission Holder (VAS 6095)

• Cylinder Head Tensioning Device (VAS 6419)

• Guide Plate for 3.0L TDI Engine (VAS 5161/23)
