Crankshaft, Cylinder Block -Fastener Tightening Specifications

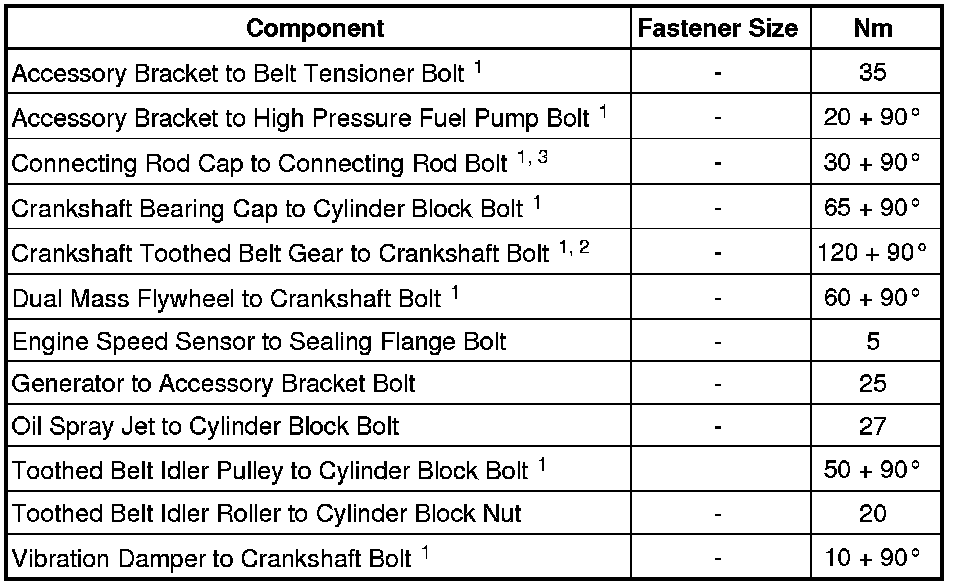

Fastener Tightening Specifications






• 1 Always replace

• 2 Do not lubricate or grease the threads or collar

• 3 Lubricate the threads and contact surface

Sealing Flange (Belt Pulley Side) Bolt Tightening Sequence and Specification

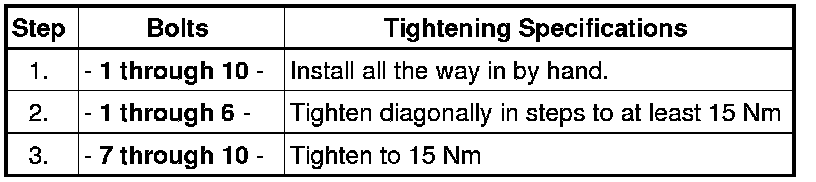

- Tighten the bolts in 3 steps in the sequence shown:






Sealing Flange (Transmission Side) Bolt Tightening Sequence and Specification

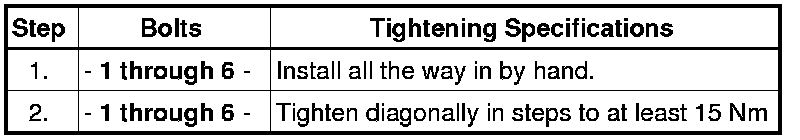

- Tighten the bolts in 2 steps in the sequence shown:






Accessory Bracket Bolt Tightening Sequence and Specification






- Tighten the accessory bracket bolts in 2 steps in sequence - 1 through 6 -:

- Install the bolts all the way by hand.

- Tighten the bolts to 40 Nm.

- Tighten the bolts - 3 and 4 - an additional 45° turn.

- Tighten the bolts - 1, 2, 5 and 6 - an additional 90° turn.
