Cooling System: Tools and Equipment

Special Tools

Special tools, testers and auxiliary items required

• Drip Tray for VAS 6100 (VAS 6208)

• Cooling System Charge Unit (VAS 6096)

• Adapter (V.A.G 1274/8)

• Hose Clamps up to 25 mm Dia. (3094)

• Transportation Lock (T10404)

• Wrench SW 13 (T10384)

• Cooling System Tester (V.A.G 1274 B)






• Adapter (V.A.G 1274/9)






• Hose Clamps up to 40 mm Dia. (3093)






• Hose Clip Pliers (VAS 6362)






• Pry Lever - Rmv Outside Mirror (80-200)

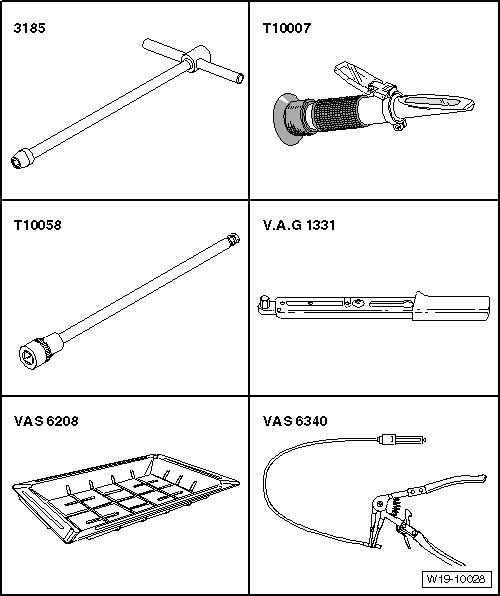

Special tools, testers and auxiliary items required

• T Bar and Socket 10 mm (3185)

• Refractometer (T10007)

• Hex Ball Socket (T10058)

• Torque Wrench (5-50 Nm) (V.A.G 1331)

• Drip Tray for VAS 6100 (VAS 6208)

• Hose Clip Pliers (VAS 6340)
