Coolant Fan

Coolant Fan

Removing

- Remove the noise insulation.

- Remove the engine cover. Refer to => [ Engine Cover ] Engine Cover.

- Remove the fan shroud with the fans. Refer to => [ Fan Shroud with Fan ] Fan Shroud with Fan.

- Free up the wire - 1 -.






- Remove the nuts - arrows - and the fan.

Installing

Install in reverse order of removal. When doing this note the following:

- Observe the electrical connections and routing.

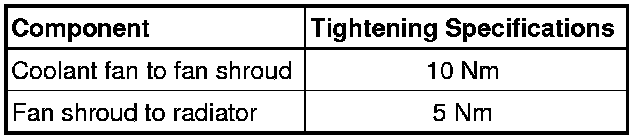

Tightening Specifications
