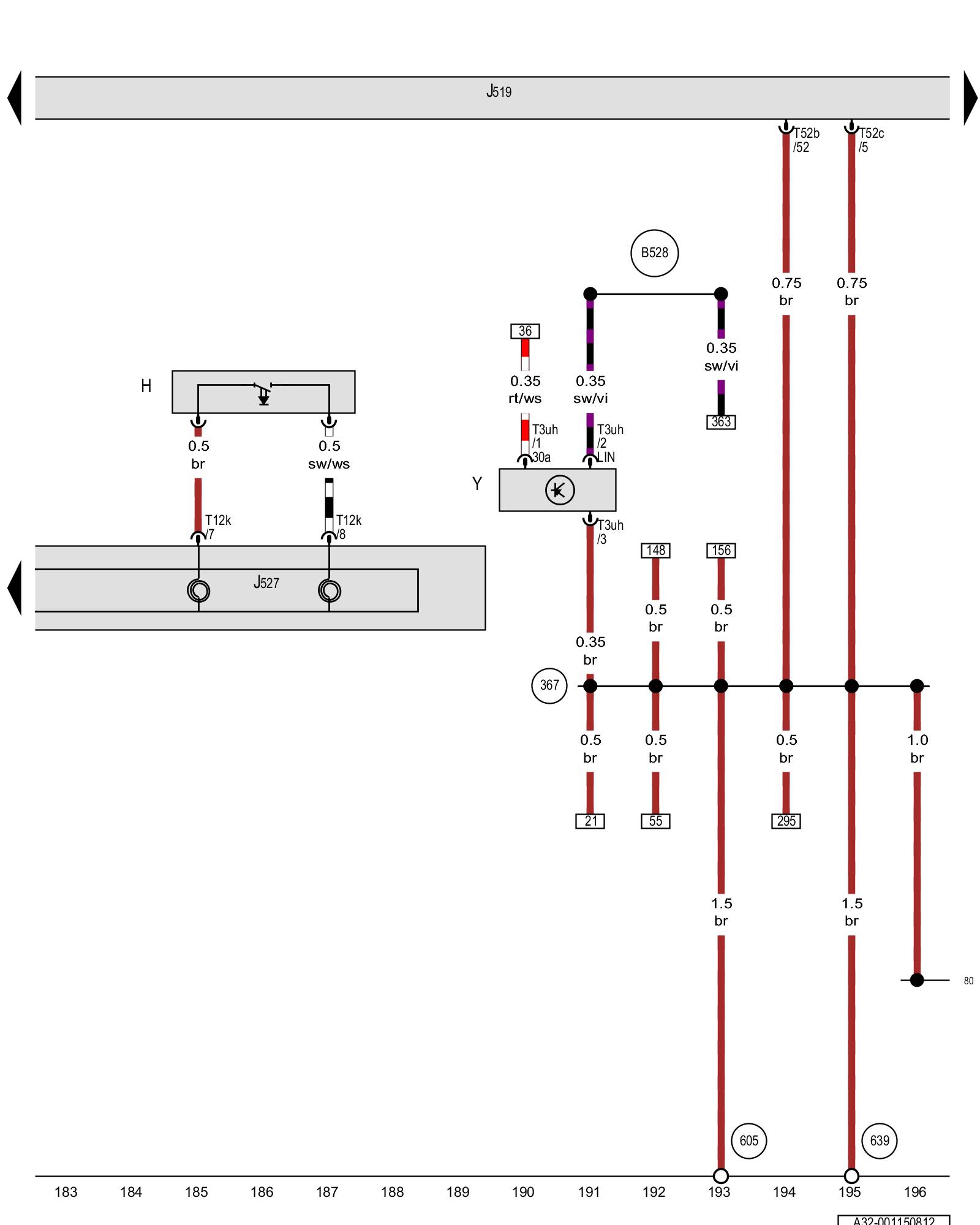

Diagram 1/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Airbag spiral spring/return spring with slip ring, Vehicle electrical system control module, Steering column electronics control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F138 - Airbag spiral spring/return spring with slip ring

H - Signal horn activation

J234 - Airbag control module Airbag System Overview Locations

J453 - Multifunction steering wheel control module

J519 - Vehicle electrical system control module Locations

J527 - Steering column electronics control module Locations Access/Start Authorization System Overview Steering Column Electronics Control Module -J527-

T3uh - 3-pin connector

T4k - 4-pin connector Locations

T12k - 12-pin connector

T52b - 52-pin connector

T52c - 52-pin connector

T75 - 75-pin connector Locations

Y - Analog clock

(80) - Ground connection 1 (in instrument cluster wiring harness)

(367) - Ground connection 2 (in main wiring harness)

(605) - Ground connection on upper steering column Locations

(639) - Ground connection on left A-pillar Locations

(B528) - LIN bus connection 1 (in main wiring harness)

Previous Diagram 1/14 (Tracks 169-182)

Next Diagram 1/16 (Tracks 197-210)
