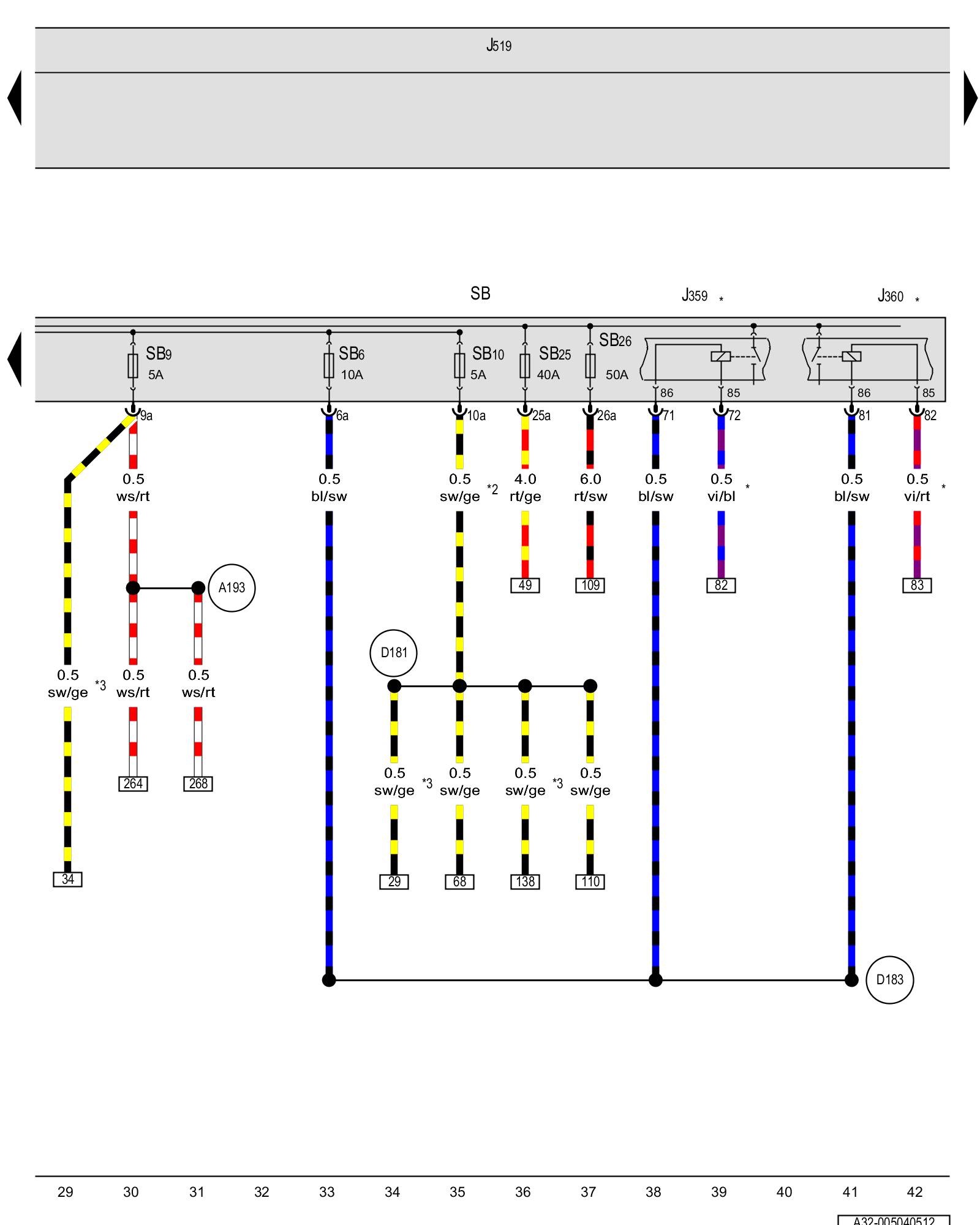

Diagram 5/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Low heat output relay, High heat output relay, Vehicle electrical system control module, Fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J359 - Low heat output relay Overview Of Relay Carrier

J360 - High heat output relay Overview Of Relay Carrier

J519 - Vehicle electrical system control module Locations

SB - Fuse panel B Overview of fuse holder

SB6 - Fuse 6 (on fuse panel B) Overview of fuse holder

SB9 - Fuse 9 (on fuse panel B) Overview of fuse holder

SB10 - Fuse 10 (on fuse panel B) Overview of fuse holder

SB25 - Fuse 25 (on fuse panel B) Overview of fuse holder

SB26 - Fuse 26 (on fuse panel B) Overview of fuse holder

(A193) - Connection 87a (in instrument panel wiring harness)

(D181) - Connection 87a (in engine compartment wiring harness) 2

(D183) - Connection 87a (in engine compartment wiring harness) 4

* - only for vehicles with auxiliary heater

*2 - Through November 2011

*3 - from December 2011
